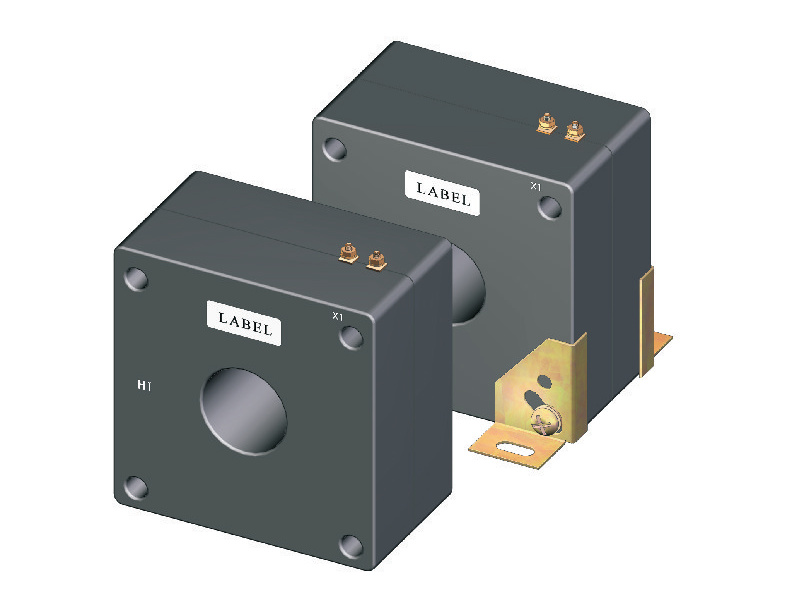

112-601 EI

Model 112 600:5A Ratio CT, C100 Relay Class, 2.25" Window, Electromagnetic Industries

495.52 495.52000000000004 USD 521.60

521.60

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Relay Class
  • CT Window
  • CT Secondary Winding Resistance
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

  • APPLICATION: Relay and metering
  • FREQUENCY: 50-400 Hz.
  • INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
  • Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
  • Order mounting bracket kit 0221B01525 separately.
  • Other ratios also available.
  • Approximate weight 25 lbs.


Specifications

Brand Electromagnetic Industries
Model 112
Input Range 0-600AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
CT Ratio 600:5A
CT Continuous Thermal Rating Factor 1.5 at 30°C amb., 1.33 at 55°C amb.
CT Relay Class C100
CT Window 2.25" Diameter
CT Secondary Winding Resistance 0.409Ω (409mΩ) @ 75°C
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.0000
ECCN EAR99
