112-101 EI

https://www.metersales.com/web/image/product.template/73571/image_1920?unique=998ee63

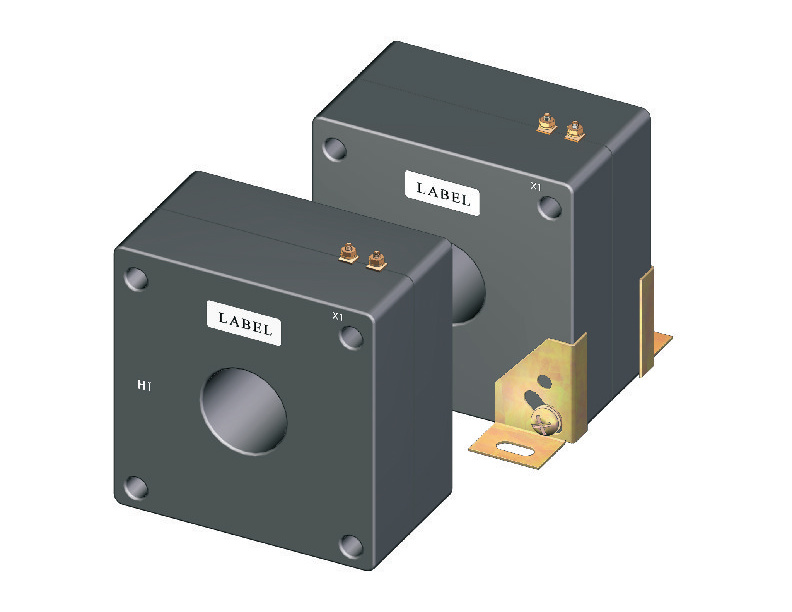

Model 112 100:5A Ratio CT, C20 Relay Class, 2.25" Window, Electromagnetic Industries

$ 535.81 535.81 USD $ 564.01

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

Contact Us

​

Share

  • APPLICATION: Relay and metering
  • FREQUENCY: 50-400 Hz.
  • INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
  • Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
  • Order mounting bracket kit 0221B01525 separately.
  • Other ratios also available.
  • Approximate weight 25 lbs.


Specifications

Product
Brand Electromagnetic Industries
Model 112
Input Range 0-100AAC
Input Frequency 60Hz
Accuracy 0.6 B0.1, 0.6 B0.2, 2.4 B0.5, 2.4 B0.9, 4.8 B1.8
Output 0-5AAC
Tariff Code 8504.31.0000
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 2.0 at 55°C amb.
CT Ratio 100:5A
CT Relay Class C20
CT Secondary Winding Resistance 0.062Ω (62mΩ) @ 75°C
CT Window 2.25" Diameter
