100-801 EI

Model 100 800:5A Ratio CT, C20 Relay Class, 4" Window, Electromagnetic Industries

$ 333.99 333.99 USD $ 351.57

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Relay Class
CT Secondary Winding Resistance
CT Window

This combination does not exist.

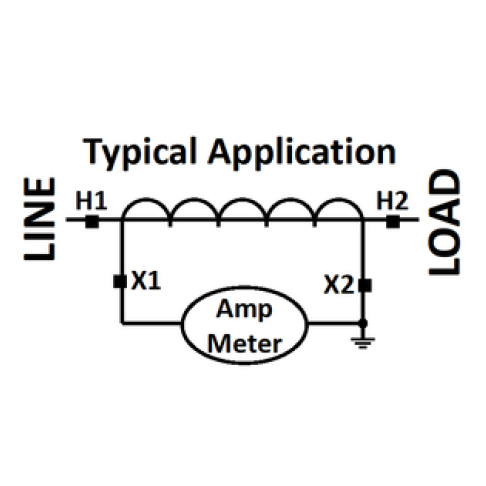

APPLICATION: Relay and metering
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.

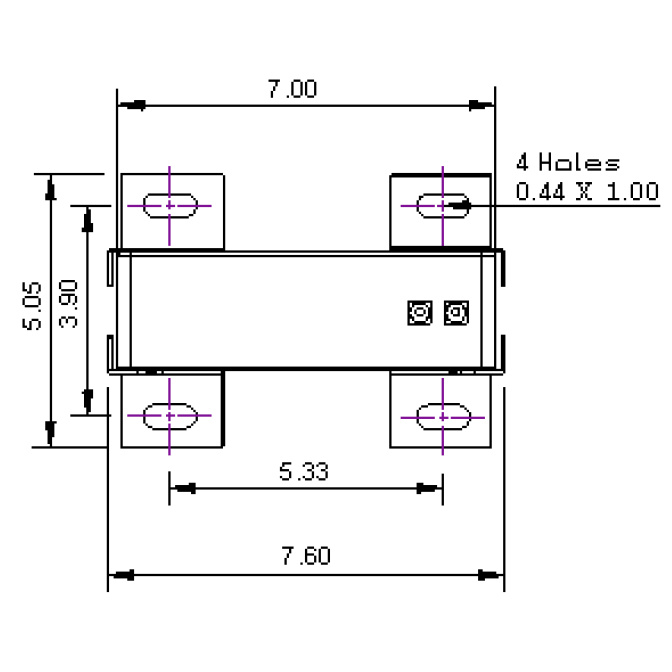

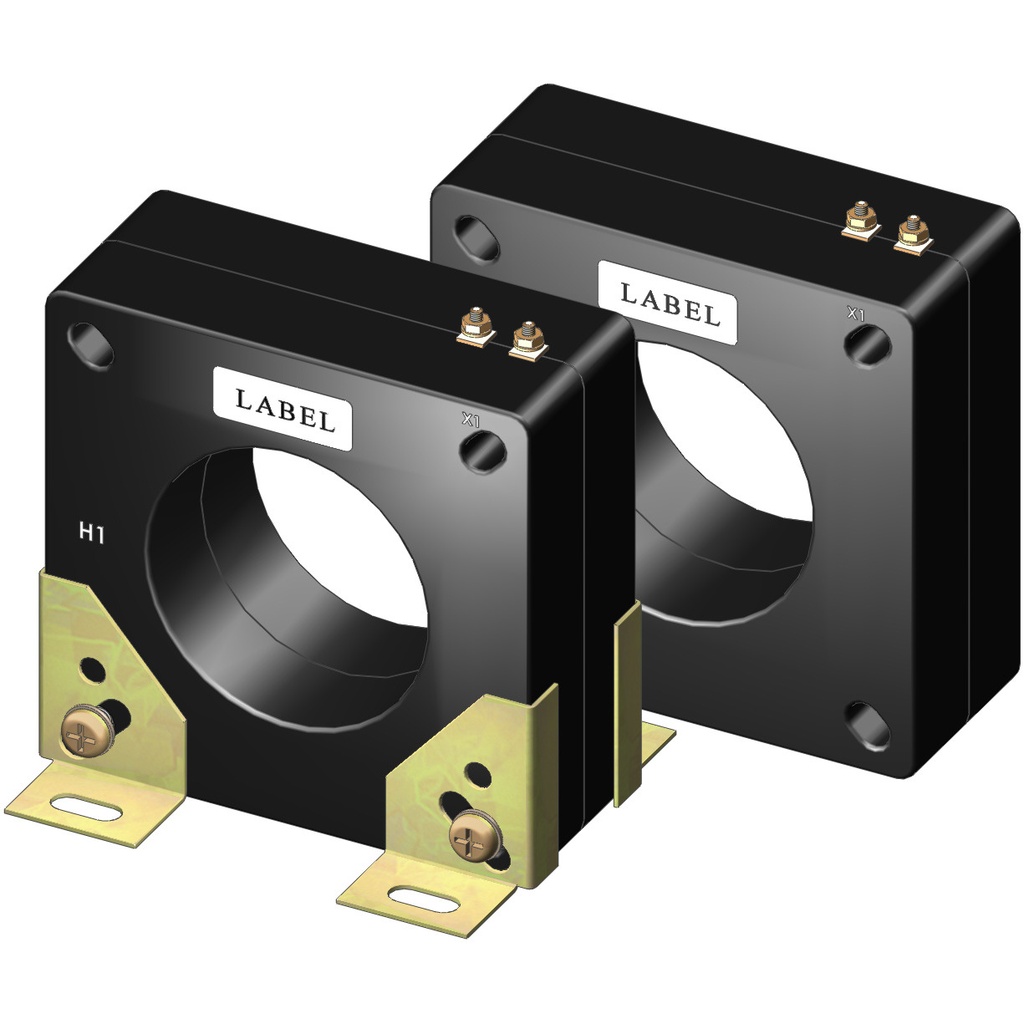

Order mounting bracket kit 1121A00018 separately.
Multi-ratios also available.
Approximate weight 10 lbs.

Specifications

Product
Brand	Electromagnetic Industries
Model	100
Input Range	0-800AAC
Input Frequency	60Hz
Accuracy	0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.6 B1.8
Output	0-5AAC
Tariff Code	8504.31.0000
ECCN	EAR99
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Continuous Thermal Rating Factor	1.5 at 30°C amb., 1.33 at 55°C amb.
CT Ratio	800:5A
CT Relay Class	C20
CT Secondary Winding Resistance	0.266Ω (266mΩ) @ 75°C

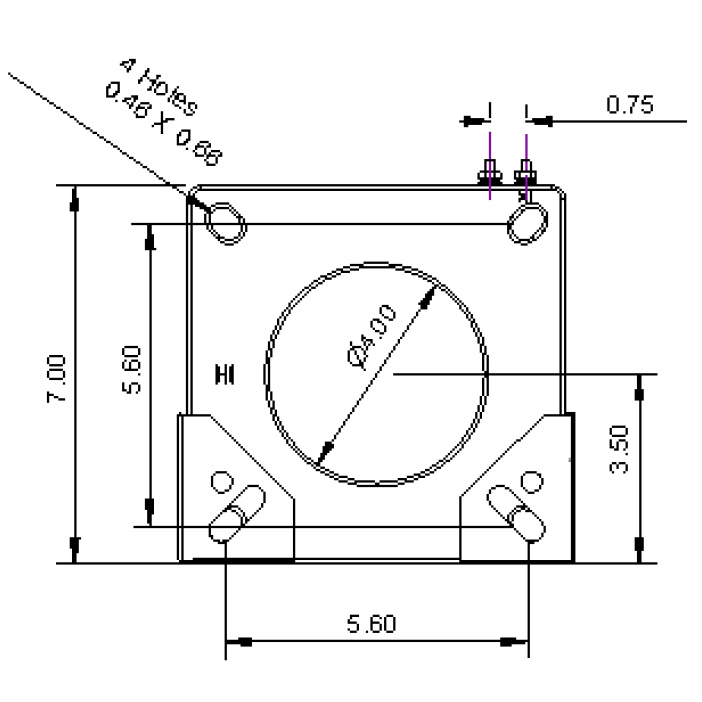

CT Window	4.00" Diameter
