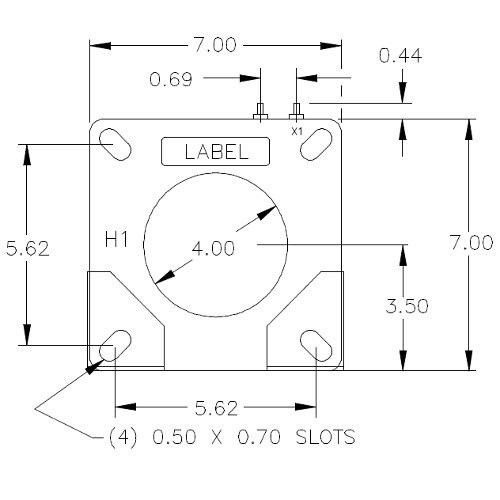

100-601 ITI Front Dimensions.jpg

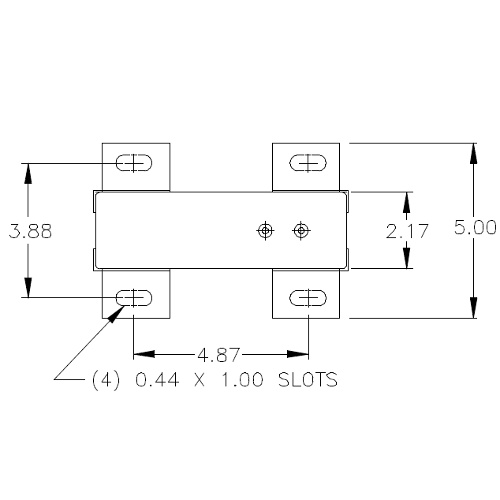

100-601 ITI Top Dimensions.jpg

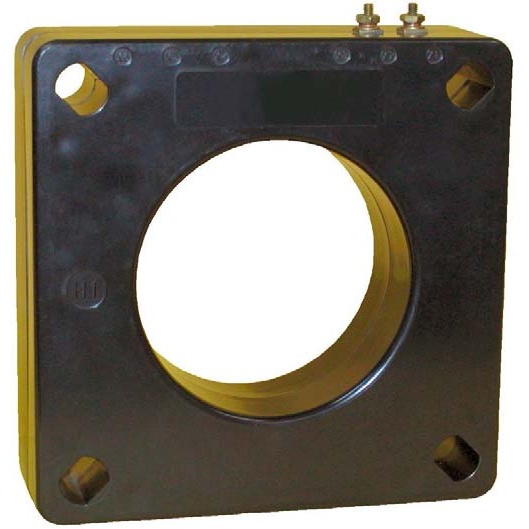

100-601 ITI

Model 100 600:5A Ratio CT, C20 Relay Class, 4" Window, ITI

$ 405.50 405.5 USD $ 405.50

$ 405.50

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Relay Class
CT Secondary Winding Resistance
CT Window

This combination does not exist.

APPLICATION: Relaying and metering.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
Order mounting bracket kit 0221B00185 separately.
Multi-ratios also available.
Approximate weight 9.5 lbs.
Approved for revenue metering by Industry Canada No. T-153

Model 100 Datasheet

Specifications

Product
Brand	Instrument Transformers Inc
Model	100
Input Range	0-600AAC
Input Frequency	60Hz
Accuracy	0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.6 B0.9, 0.6 B1.8
Output	0-5AAC
Tariff Code	8504.31.4035
ECCN	EAR99
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Continuous Thermal Rating Factor	2.0 at 30°C amb., 1.5 at 55°C amb.
CT Ratio	600:5A
CT Relay Class	C20
CT Secondary Winding Resistance	0.199Ω (199mΩ) @ 75°C
CT Window	4.00" Diameter
