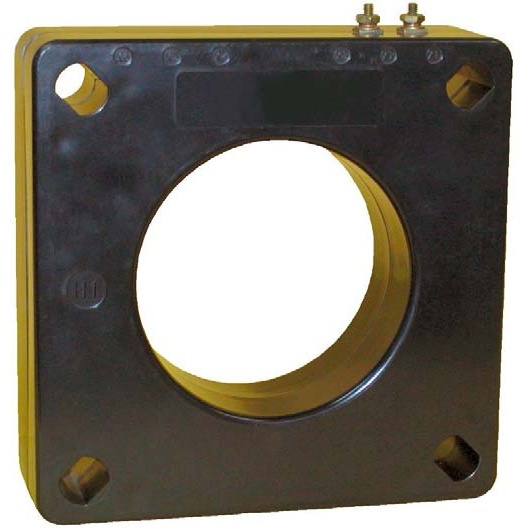

Model 100 300:5A Ratio CT, C10 Relay Class, 4" Window, ITI

389.90 389.90000000000003 USD 389.90

389.90

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

  • APPLICATION: Relaying and metering.
  • FREQUENCY: 50-400 Hz.
  • INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
  • Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.

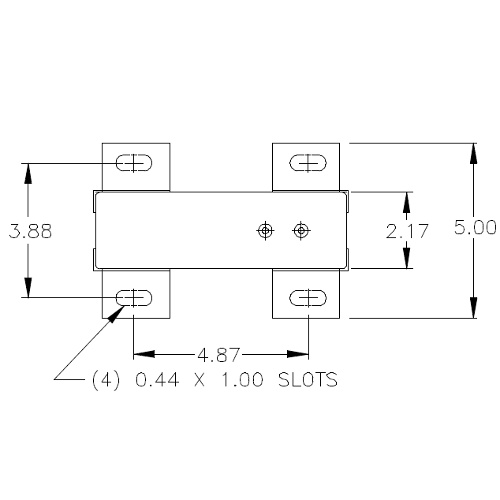

  • Order mounting bracket kit 0221B00185 separately.
  • Multi-ratios also available.
  • Approximate weight 9.5 lbs.
  • Approved for revenue metering by Industry Canada No. T-153

Model 100 Datasheet

Specifications

Product
Brand Instrument Transformers Inc
Model 100
Input Range 0-300AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.6 B0.5, 1.2 B0.9
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 2.0 at 55°C amb.
CT Ratio 300:5A
CT Relay Class C10
CT Secondary Winding Resistance 0.091Ω (91mΩ) @ 75°C

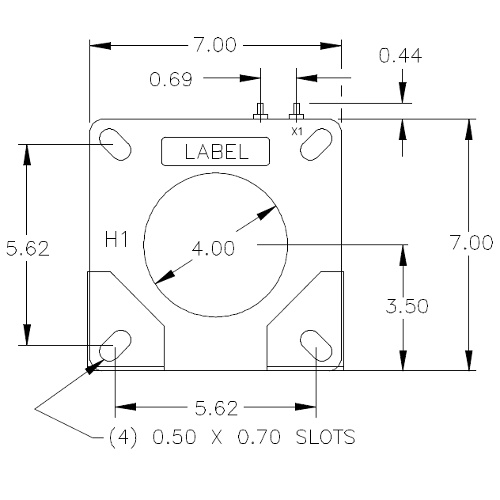

CT Window 4.00" Diameter
