100-202 EI

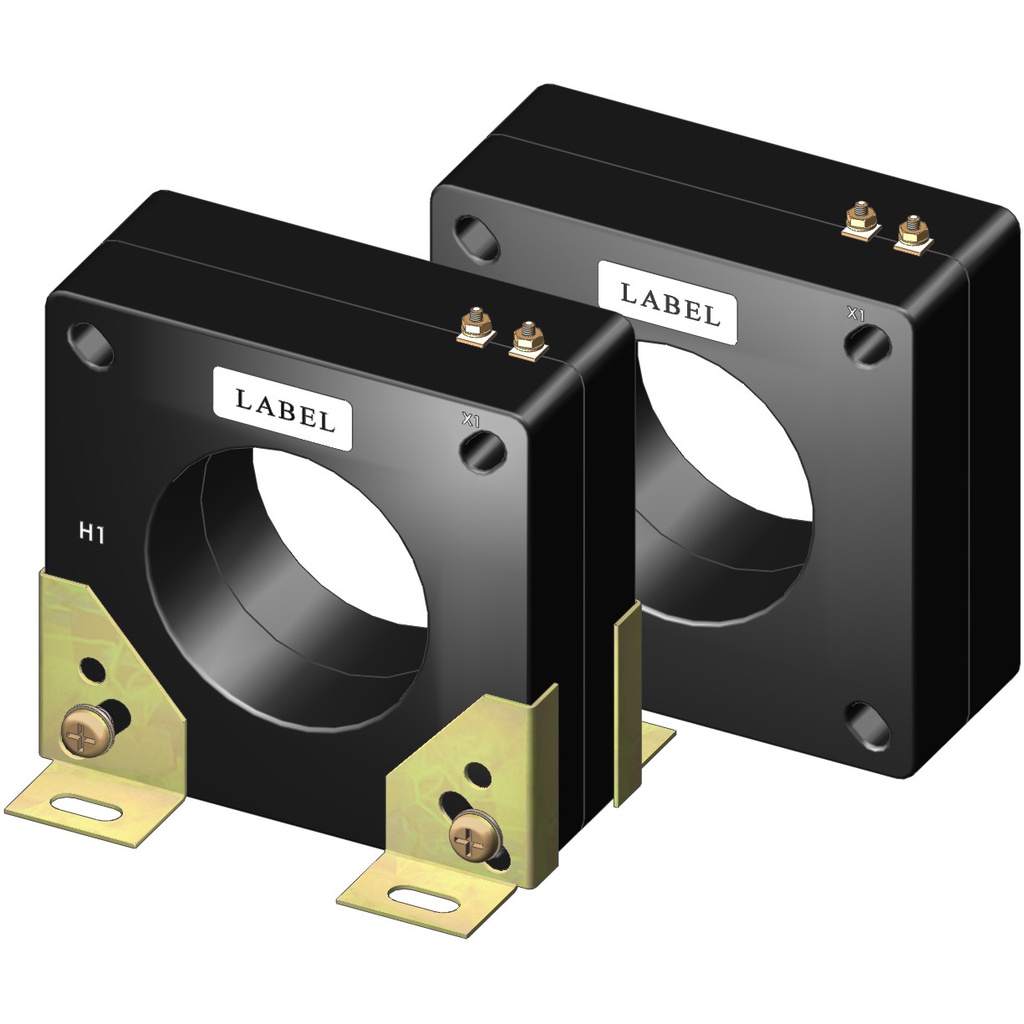

Model 100 2000:5A Ratio CT, C50 Relay Class, 4" Window, Electromagnetic Industries

339.36 339.36 USD 357.22

357.22

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Relay Class
  • CT Window
  • CT Secondary Winding Resistance
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

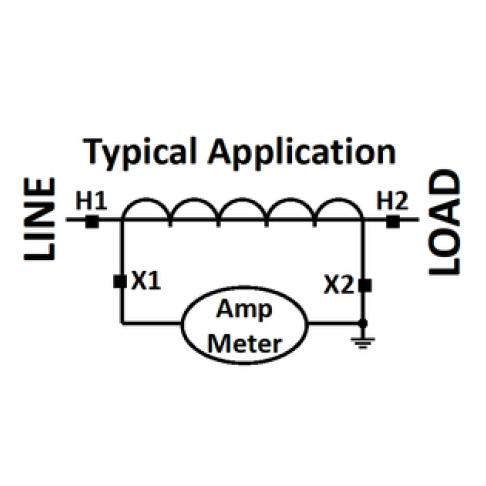

  • APPLICATION: Relay and metering
  • FREQUENCY: 50-400 Hz.
  • INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
  • Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
  • Order mounting bracket kit 1121A00018 separately.
  • Multi-ratios also available.
  • Approximate weight 10 lbs.


Specifications

Brand Electromagnetic Industries
Model 100
Input Range 0-2000AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
CT Ratio 2,000:5A
CT Continuous Thermal Rating Factor 1.0 at 30°C amb., 0.8 at 55°C amb.
CT Relay Class C50
CT Window 4.00" Diameter
CT Secondary Winding Resistance 0.624Ω (624mΩ) @ 75°C
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.0000
ECCN EAR99
