100-201 ITI

https://www.metersales.com/web/image/product.template/32203/image_1920?unique=d8b0c0b

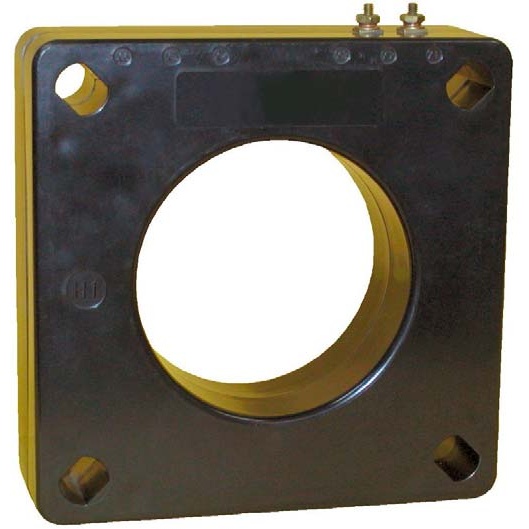

Model 100 200:5A Ratio CT, C10 Relay Class, 4" Window, ITI

$ 405.50 405.5 USD $ 405.50

$ 405.50

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

Contact Us

​

  • APPLICATION: Relaying and metering.
  • FREQUENCY: 50-400 Hz.
  • INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
  • Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
  • Order mounting bracket kit 0221B00185 separately.
  • Multi-ratios also available.
  • Approximate weight 9.5 lbs.

Model 100 Datasheet

Specifications

Product
Brand Instrument Transformers Inc
Model 100
Input Range 0-200AAC
Input Frequency 60Hz
Accuracy 0.6 B0.1, 0.6 B0.2, 1.2 B0.5, 2.4 B0.9
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 2.0 at 55°C amb.
CT Ratio 200:5A
CT Relay Class C10
CT Secondary Winding Resistance 0.057Ω (57mΩ) @ 75°C

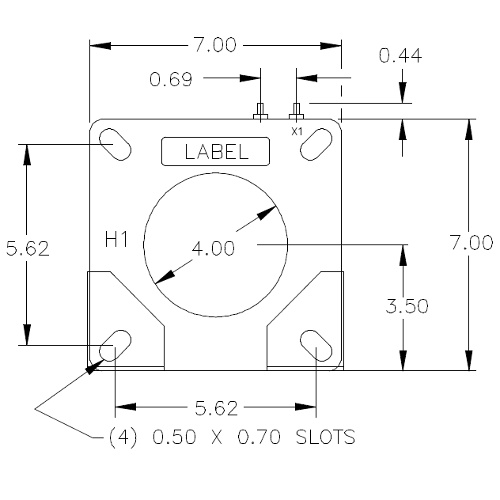

CT Window 4.00" Diameter
