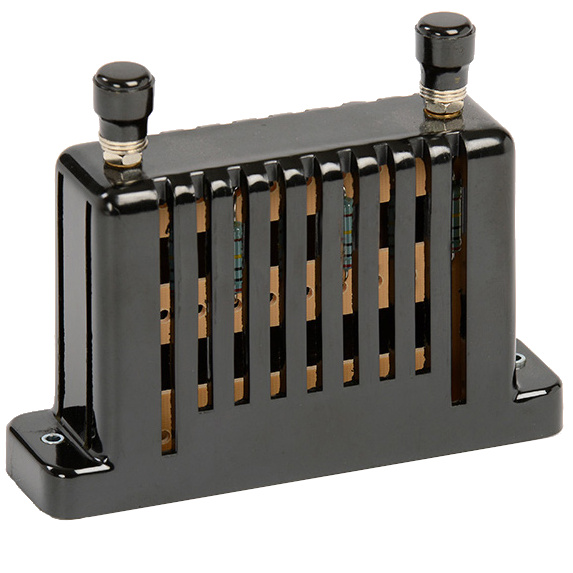

Model 183 Multiplier (series resistor)
- Reduces high AC Voltage signals for Simpson 150VAC meters.
- Accuracy +/-1%
- For use on AC Volts. Each model is 166 Ohms/Volt.
- For use with Simpson 150VAC iron-vane (aka moving iron) meters indicating AC Voltage.
- Can also be used with Simpson digital panel meters in a 0-200VAC range with a 25k Ohm, 1W resistor across the input (Meter must be scaled).
Specifications
| Brand | Simpson Electric |
| Model | 183 |
| Input Range | 0-600VAC |
| Scale, Range, or Display | 0-600VAC |
| Tariff Code | 9030.90.8823 |
| ECCN | EAR99 |
