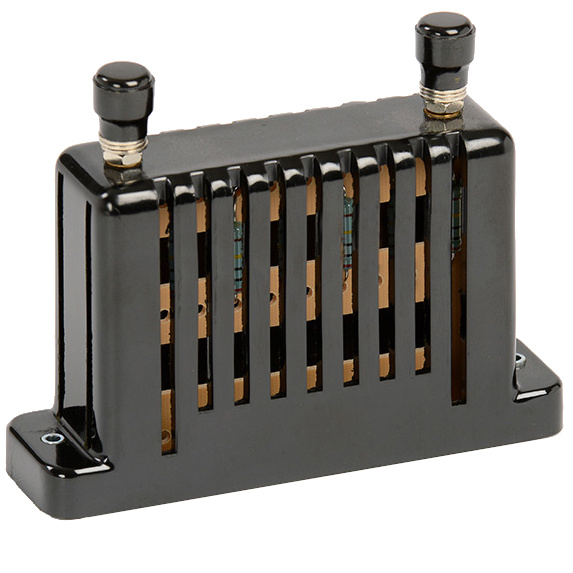

Model 183 0-3000VDC, 6M Ohm, External Multiplier, Simpson Electric

72.27 72.27 USD 72.27

72.27

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Tariff Code
  • ECCN

This combination does not exist.

  • Reduces high DC Voltage signals down to 500uADC.
  • Accuracy +/-1%
  • For use on DC Volts.  Each model is 2000 Ohms/Volt.
  • For use with Simpson 500uADC meters indicating DC Voltage.
  • Can also be used with Simpson digital panel meters in a 0-2mADC range (Must be scaled).


Specifications

Brand Simpson Electric
Model 183
Input Range 0-3000VDC
Input Frequency DC
Scale, Range, or Display 0-3000VDC
Tariff Code 9030.90.8823
ECCN EAR99
