Model 55 0-150VAC, 3.5" Round series, Simpson Electric

150.07 150.07 USD 150.07

150.07

  • Brand
  • Model
  • Series
  • Form Factor
  • Tariff Code
  • Input Range
  • Accuracy
  • Input Frequency
  • Scale, Range, or Display
  • ECCN

This combination does not exist.

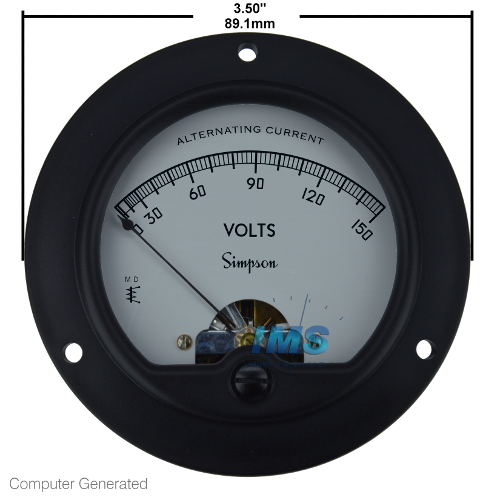

Made with a fixed coil, iron vane movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The cover features an O-Ring backed zero corrector to ensure this meter can endure in environments where dust and water may be an issue.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized, Please specify and we will order you the finished meter from Simpson.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such as custom artworks, and adding company logos to dial artworks.

Specifications

Brand Simpson Electric
Model 55
Series Round
Form Factor 3-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Tariff Code 9030.33.0040
Input Range 0-150VAC
Accuracy ±2% of Full Scale
Input Frequency 60Hz
Scale, Range, or Display 0-150VAC
ECCN EAR99
