07790

Model 29 0-500uADC Scale 0-1500VDC, with 08556, 4.5" Rectangular series, Simpson Electric

171.87 171.87 USD 171.87

171.87

  • Brand
  • Form Factor
  • Input Frequency
  • Input Range
  • Model
  • Scale, Range, or Display
  • Tariff Code
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.


This meter is not Underwriter Laboratories Recognized.  If you require the instrument to be Underwriter Laboratories Recognized, Please specify and we will order you the finished meter from Simpson.


As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.

Specifications

Brand Simpson Electric

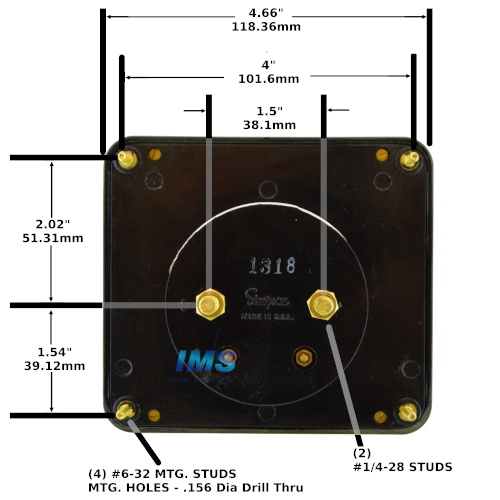

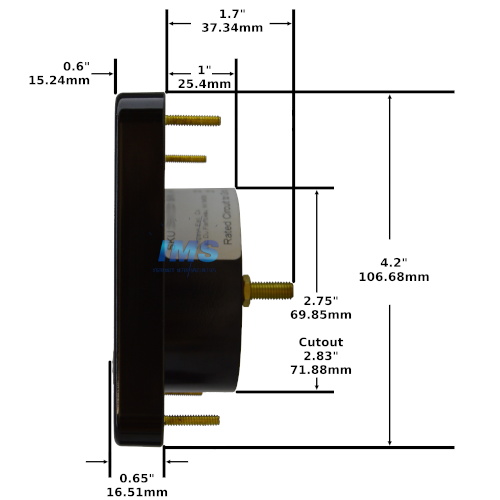

Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Frequency DC
Input Range 0-1500VDC
Model 29
Scale, Range, or Display 0-1500VDC
Tariff Code 9030.33.0040
ECCN EAR99
