Model 29 0-150VDC, 4.5" Rectangular series, Simpson Electric

150.18 150.18 USD 150.18


  • Brand
  • Model
  • Series
  • Form Factor
  • Tariff Code
  • Input Range
  • Accuracy
  • Input Frequency
  • Scale, Range, or Display
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized, Please specify and we will order you the finished meter from Simpson.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.


Brand Simpson Electric
Model 29
Series Rectangular

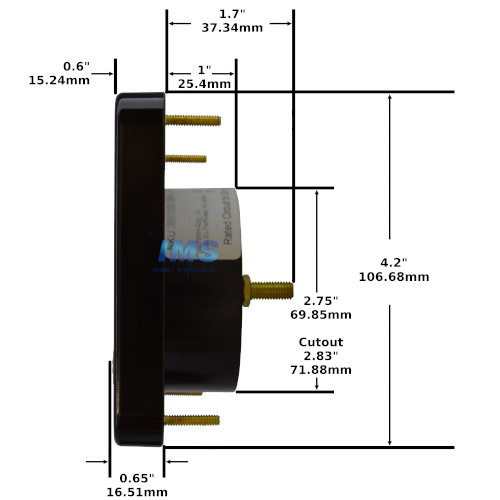

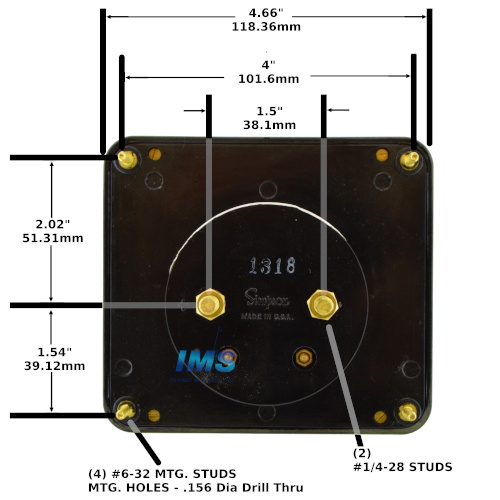

Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Tariff Code 9030.33.0040
Input Range 0-150VDC
Accuracy ±2% of Full Scale
Input Frequency DC
Scale, Range, or Display 0-150VDC
