077-14DU-PQYY-FQ

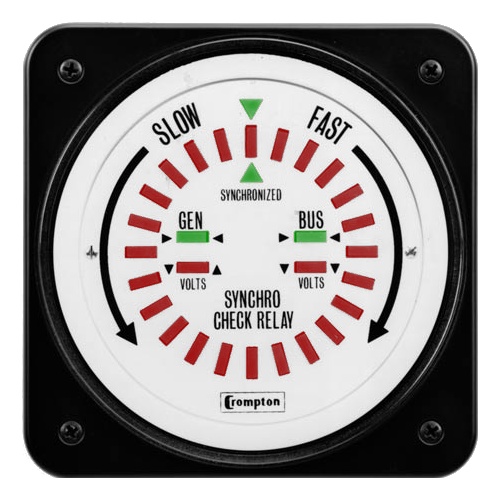

Model 077 4.5" 360 Degree LED Synchroscope and Synchro Check Relay, Dead Bus, input 120VAC, Scaled 360 Degrees 24 LED Display, Freq. 40-65 Hz.

$ 982.59 982.59 USD $ 982.59

$ 982.59

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Input Frequency
  • Scale, Range, or Display
  • Scale, Range, or Display
  • Tariff Code
  • ECCN

This combination does not exist.

70 Series AC LED 360° Synchroscope and Synchro Check Relay

  • Burden: 4VA maximum.  Suitable for single or three phase systems
  • Safety: IEC1010-1(300V a.c. rms installation degree 2)
  • Dielectric: 4kV rms for 1 minute
  • Isolation: BUS/GEN/RELAY
  • Vibration: to Lloyds shipping specification
  • Phase Difference: +0 to 20° ±1°
  • Voltage Difference: +0 to 20% ±2%
  • Time Delay: 0 to 2.5 seconds +10%

Specifications

Brand Crompton
Series Switchboard
Model 077
Form Factor 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1
Input Range 120VAC
Input Frequency 50Hz, 60Hz
Scale, Range, or Display Slow Fast, Gen/Bus Volts
Tariff Code 9030.39.9900
ECCN EAR99
