077-14AU-PQYY-FQ

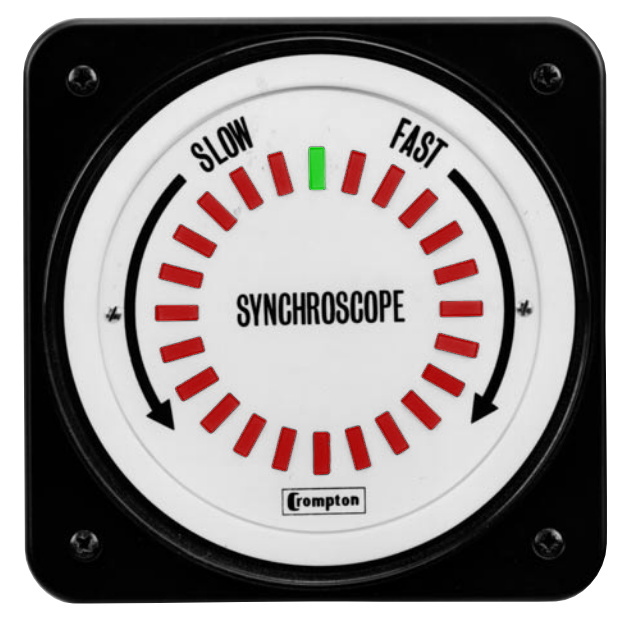

Model 077 4.5" 360 Degree LED Synchroscope, input 120VAC, Scaled 360 Degrees 24 LED Display, Freq. 40-65 Hz.
70 Series AC LED 360° Synchroscope
- Burden: 4VA maximum. Suitable for single or three phase systems
- Safety: IEC1010-1(300V a.c. rms installation degree 2)
- Dielectric: 4kV rms for 1 minute
- Isolation: BUS/GEN/RELAY
- Vibration: to Lloyds shipping specification
Specifications
| Brand | Crompton |
| Series | Switchboard |
| Model | 077 |
| Form Factor | 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1 |
| Input Range | 120VAC |
| Input Frequency | 50Hz, 60Hz |
| Scale, Range, or Display | Slow Fast |
| Tariff Code | 9030.39.9900 |
| ECCN | EAR99 |
