077-12PA-P4C7

https://www.metersales.com/web/image/product.template/72656/image_1920?unique=1305310

Model 077 301-500VAC Indicator Phase Sequence & AC Phase Failure, 50/60Hz, Switchboard series, Crompton

$ 400.00 400.0 USD $ 400.00

Not Available For Sale

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Tariff Code
  • ECCN
  • Input Frequency

This combination does not exist.

Contact Us

​

Share

Two neon bulbs for phase sequence indication - first marked the caption “correct 1-2-3”, the second marked “incorrect 3-2-1”. Three neon bulbs for phase failure indication - first marked 1, second marked 2, third marked 3.

Replaces:

  • 077-12PA-P4C5
  • 077-12PA-P4C6

Specifications

Brand Crompton
Series Switchboard
Model 077

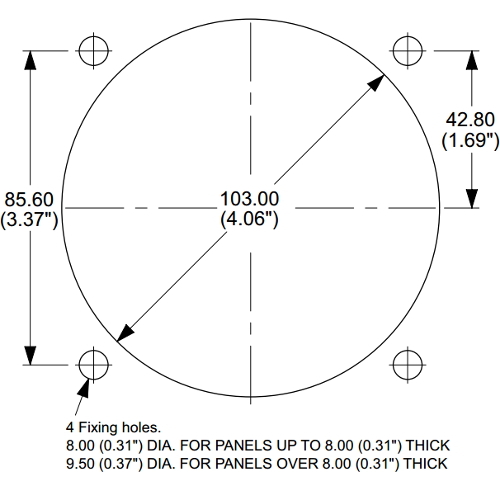

Form Factor 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1
Input Range 301-500VAC
Input Frequency 50Hz, 60Hz
Scale, Range, or Display Phase Sequence & AC Phase Failure
Tariff Code 9030.39.3000
ECCN EAR99
