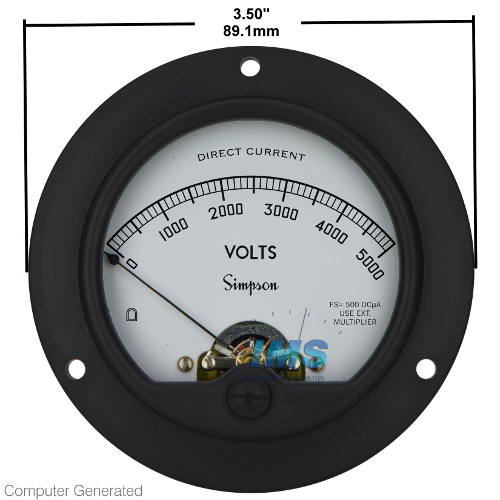

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The cover features an O-Ring backed zero corrector to ensure this meter can endure in environments where dust and water may be an issue.
This meter includes one of Simpson Electrics external "multiplier" series resistor.
As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and multipliers, completing final modifications and calibration in our laboratory. This meter and multiplier, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized, Please specify and we will order you the finished meter from Simpson.
As an Authorized Simpson Modification Center, we can offer custom upgrades, such as meter illumination, custom artworks, and adding company logos to dial artworks.
Specifications
| Brand | Simpson Electric |
| Series | Round |
| Model | 25 |
| Form Factor | 3-Stud Mount, Panel: 3.5-Inch ANSI C39.1 |
| Input Range | 0-500µADC |
| Input Frequency | DC |
| Scale, Range, or Display | 0-5000VDC |
| Accuracy | ±2% of Full Scale |
| Tariff Code | 9030.33.0040 |
| ECCN | EAR99 |
