Model 25 0-500uADC Scale 0-1000VDC, 3.5" Round series, with External Multiplier 08554, Simpson Electric

181.21 181.21 USD 181.21


  • Brand
  • Model
  • Series
  • Form Factor
  • Tariff Code
  • Input Range
  • Accuracy
  • Input Frequency
  • Scale, Range, or Display
  • ECCN

This combination does not exist.

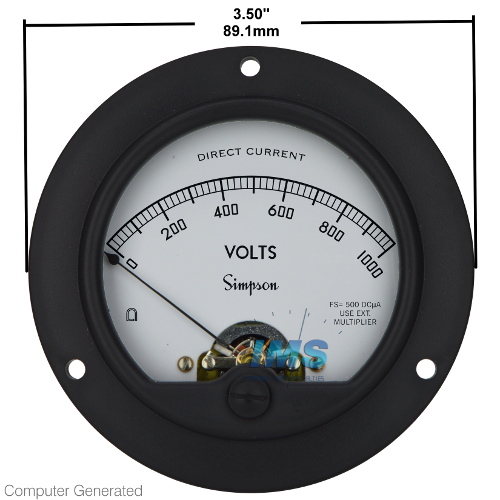

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The cover features an O-Ring backed zero corrector to ensure this meter can endure in environments where dust and water may be an issue.

This meter includes one of Simpson Electrics external "multiplier" series resistor.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and multipliers, completing final modifications and calibration in our laboratory. This meter and multiplier, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized, Please specify and we will order you the finished meter from Simpson.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such as meter illumination, custom artworks, and adding company logos to dial artworks.


Brand Simpson Electric
Model 25
Series Round
Form Factor 3-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Tariff Code 9030.33.0040
Input Range 0-500µADC
Accuracy ±2% of Full Scale
Input Frequency DC
Scale, Range, or Display 0-1000VDC
