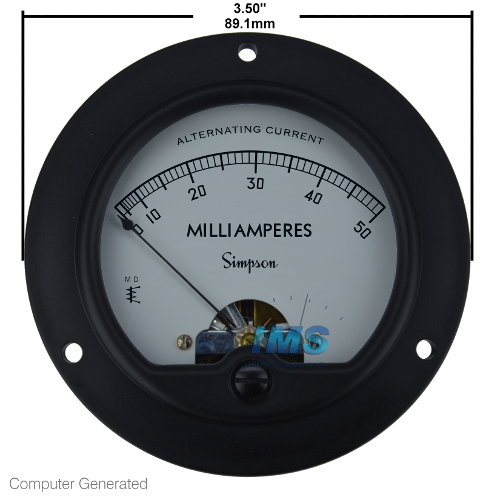

Model 55 0-50mAAC, 3.5" Round series, Simpson Electric

137.37 137.37 USD 137.37

137.37

Not Available For Sale

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

Made with a fixed coil, iron vane movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The cover features an O-Ring backed zero corrector to ensure this meter can endure in environments where dust and water may be an issue.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized, Please specify and we will order you the finished meter from Simpson.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such as custom artworks, and adding company logos to dial artworks.

Specifications

Brand Simpson Electric
Series Round
Model 55
Form Factor 3-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Input Range 0-50mAAC
Input Frequency 60Hz
Scale, Range, or Display 0-50mAAC
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
ECCN EAR99
