05170

Model 29 0-100mADC, 4.5" Rectangular series, Simpson Electric

134.03 134.03 USD 134.03

134.03

  • Brand
  • Form Factor
  • Input Frequency
  • Input Range
  • Model
  • Scale, Range, or Display
  • Tariff Code
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized, let us know and we will order the meter directly from Simpson at an extended lead time.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.

Specifications

Brand Simpson Electric

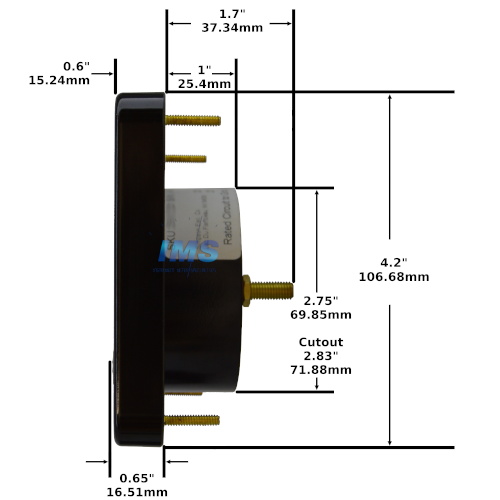

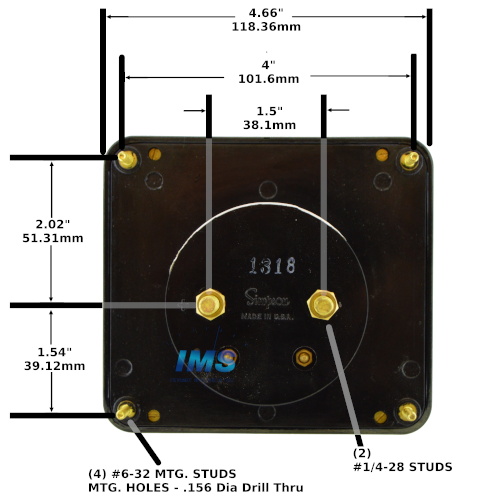

Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Frequency DC
Input Range 0-100mADC
Model 29
Scale, Range, or Display 0-100mADC
Tariff Code 9030.33.0040
ECCN EAR99
