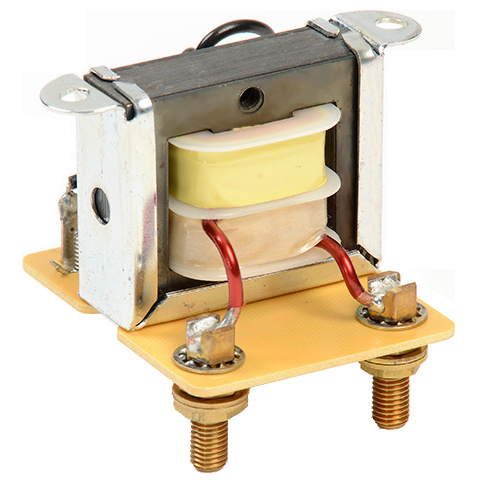

Model 186 50A:10VAC Ratio Current to Voltage Transformer, 1.9VA, Simpson Electric

106.65 106.65 USD 106.65


  • Brand
  • Model
  • Input Frequency
  • Input Frequency
  • Input Frequency
  • Input Range
  • Accuracy
  • Output
  • Burden VA Max.
  • Tariff Code
  • ECCN

This combination does not exist.

  • Optimal for remote sensing of AC current signals

  • Converts AC current signal to 0-10 ACV signal

  • For use with Rectifier type analog panel meters or digital indicators with a load of greater than or equal to 10kΩ (1000Ω/V)

  • Perfect for low current measurement where a toroidal "donut" current transformer would not sense a signal

  • Frequency Range from 50Hz to 5kHz

  • Accuracy ±2%

  • Not for use in circuits where sustained overloads are possible

Current Transformer Datasheet


Brand Simpson Electric
Model 186
Input Frequency 50Hz, 60Hz, 400Hz
Input Range 0-50AAC
Accuracy 2% Class
Output 0-10VAC
Burden VA Max. 1.9VA
Tariff Code 9030.90.8823
