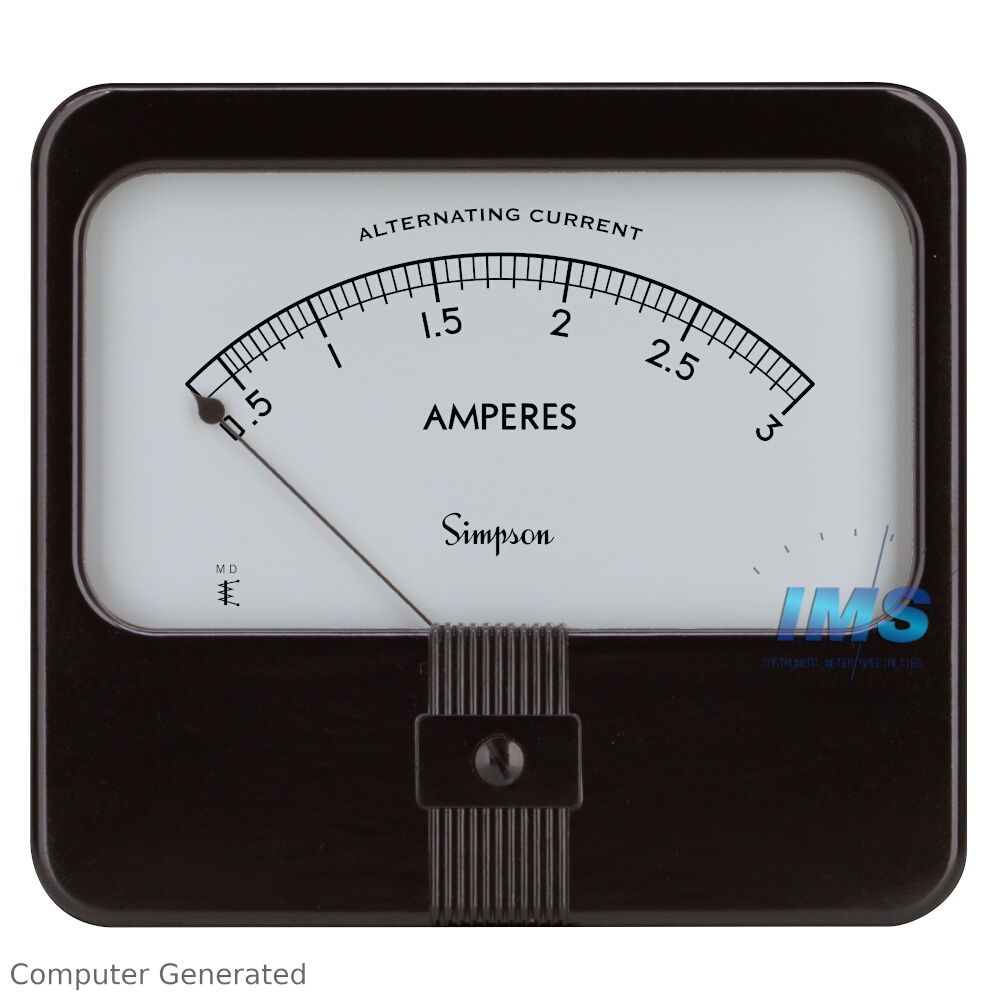

Model 59 0-3AAC, 4.5" Rectangular series, Simpson Electric

138.92 138.92000000000002 USD 138.92

138.92

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized, Please specify and we will order you the finished meter from Simpson.


As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.

Specifications

Brand Simpson Electric
Series Rectangular
Model 59

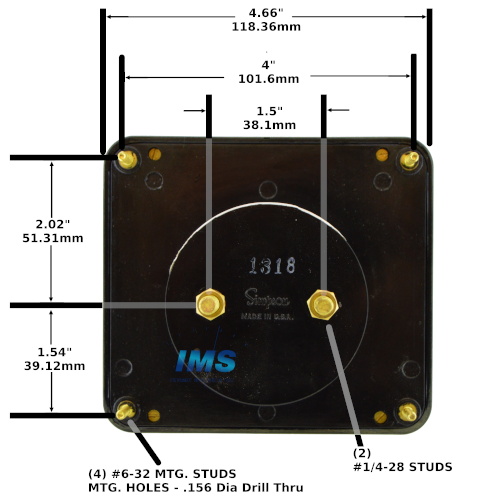

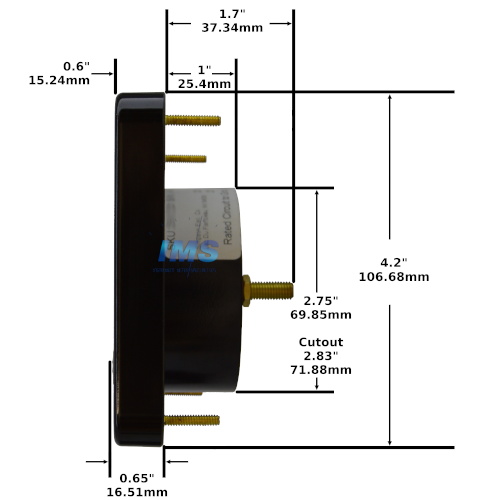

Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Range 0-3AAC
Input Frequency 60Hz
Scale, Range, or Display 0-3AAC
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
ECCN EAR99
