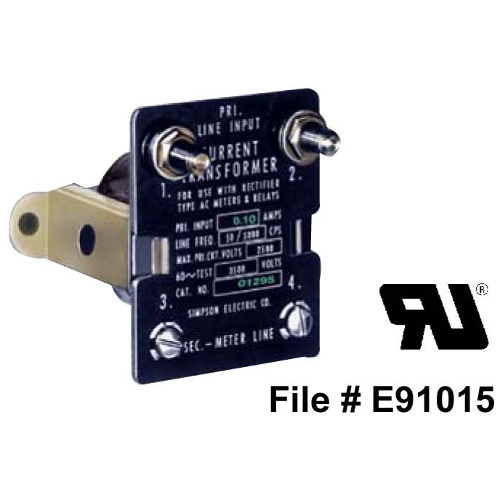

Model 186 15A:10VAC Ratio Current to Voltage Transformer, 1.05VA, Simpson Electric

$ 102.91 102.91 USD $ 102.91

$ 102.91

  • Brand
  • Input Range
  • Model
  • Output
  • Tariff Code
  • ECCN

This combination does not exist.

  • Optimal for remote sensing of AC current signals

  • Converts AC current signal to 0-10 ACV signal

  • For use with Rectifier type analog panel meters or digital indicators with a load of greater than or equal to 10kΩ (1000Ω/V)

  • Perfect for low current measurement where a toroidal "donut" current transformer would not sense a signal

  • Frequency Range from 50Hz to 5kHz

  • Accuracy ±2%

  • Not for use in circuits where sustained overloads are possible

Current Transformer Datasheet

Specifications

Brand Simpson Electric
Input Range 0-15AAC
Model 186
Output 0-10VAC
Tariff Code 9030.90.8823
ECCN EAR99
