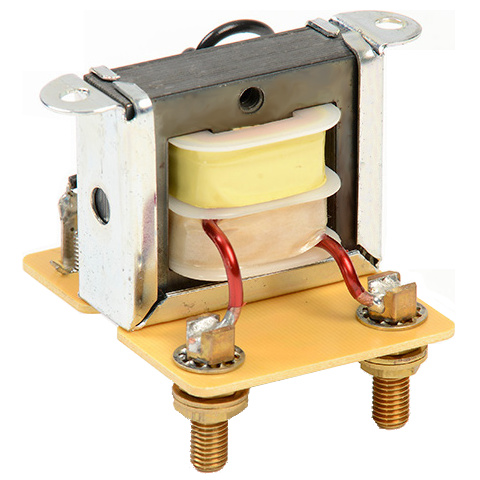

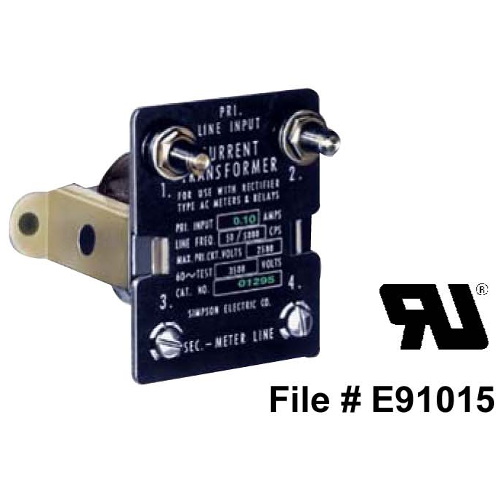

Model 186 5A:10VAC Ratio Current to Voltage Transformer, 0.40VA, Simpson Electric

103.26 103.26 USD 103.26


  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Input Frequency
  • Input Frequency
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • CT Burden VA Max.

This combination does not exist.

  • Optimal for remote sensing of AC current signals
  • Converts AC current signal to 0-10 ACV signal
  • For use with Rectifier type analog panel meters or digital indicators with a load of greater than or equal to 10kΩ (1000Ω/V)
  • Perfect for low current measurement where a toroidal "donut" current transformer would not sense a signal
  • Frequency Range from 50Hz to 5kHz
  • Accuracy ±2%
  • Not for use in circuits where sustained overloads are possible

Current Transformer Datasheet


Brand Simpson Electric
Model 186
Input Range 0-5AAC
Input Frequency 50Hz, 60Hz, 400Hz
Accuracy 2% Class
Output 0-10VAC
Tariff Code 9030.90.8823
Current Transformers
CT Burden VA Max. 0.40VA
