013-75AA-LSRX-C7-B3

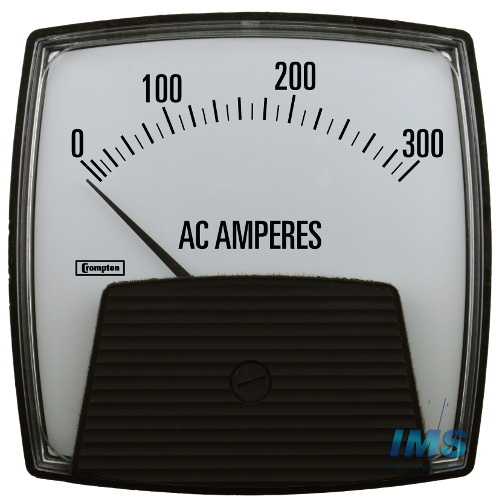

Model 013 0-5AAC Scale 0-300AAC, 50/60Hz, 3-Stud Mounting, 3.5" Saxon series, Crompton

57.30 57.300000000000004 USD 57.30

57.30

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • CT Ratio
  • Tariff Code
  • ECCN

This combination does not exist.

Saxon Indicators

A range of 3.5" surface mount panel meters utilizing pivot and jewel mechanisms and offering IP54 protection. The range includes iron vane and moving coil AC and DC ammeters and voltmeters and frequency meters designed to perform in demanding environments.

Features

  • Three compact case sizes.
  • Withstands high levels of shock,vibration, dirt and humidity.
  • Pivot and jewel mechanisms

Benefits

  • Complies with ANSI C39.1 (IEC 51)
  • IP54 (NEMA 3) protection
  • Instruments comply with BSEN61010-1 and meet IEC414 (BS5458)
  • Pass dielectric test (2600V for 1min)

Applications

  • Switchgear
  • Distribution systems
  • Generator sets
  • Control panels
  • Energy management
  • Building management
  • Utility power monitoring
  • Process control
  • Motor control

Compliant with

  • UL approved file no. E203000

Specifications

Brand Crompton
Series Saxon
Model 013
Form Factor 3-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Input Range 0-5AAC
Input Frequency 50Hz, 60Hz
Scale, Range, or Display 0-300AAC
Accuracy ±2% of Full Scale
CT Ratio 300:5A
Tariff Code 9030.39.9900
ECCN EAR99
