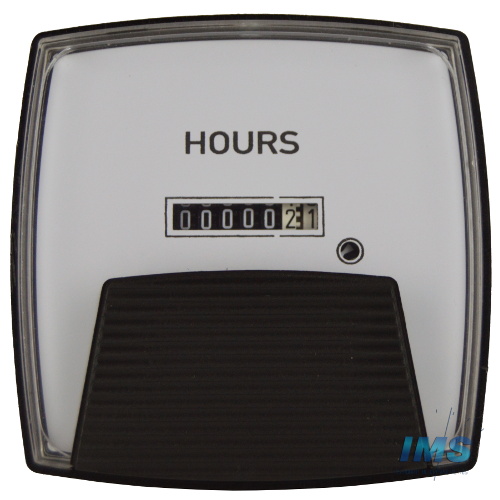

013-156A-PNZH-C6-B3

Model 013 0-99,999.99Hrs, 110-130VAC, 60Hz, 3-Stud Mounting, 3.5" Saxon series, Crompton

67.42 67.42 USD 67.42

67.42

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

Saxon Indicators

A range of 3.5" surface mount Elapsed Time panel meters offers IP54 protection.

Features

  • Three compact case sizes.
  • Withstands high levels of shock,vibration, dirt and humidity.

Benefits

  • Complies with ANSI C39.1 (IEC 51)
  • IP54 (NEMA 3) protection
  • Instruments comply with BSEN61010-1 and meet IEC414 (BS5458)
  • Pass dielectric test (2600V for 1min)

Applications

  • Switchgear
  • Distribution systems
  • Generator sets
  • Control panels
  • Energy management
  • Building management
  • Utility power monitoring
  • Process control
  • Motor control

Compliant with

  • UL approved file no. E203000

Specifications

Brand Crompton
Series Saxon
Model 013

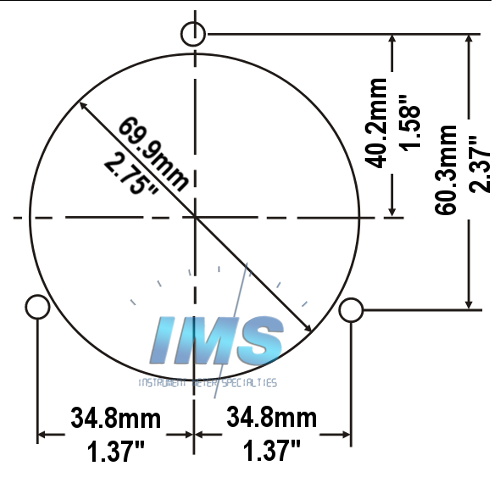

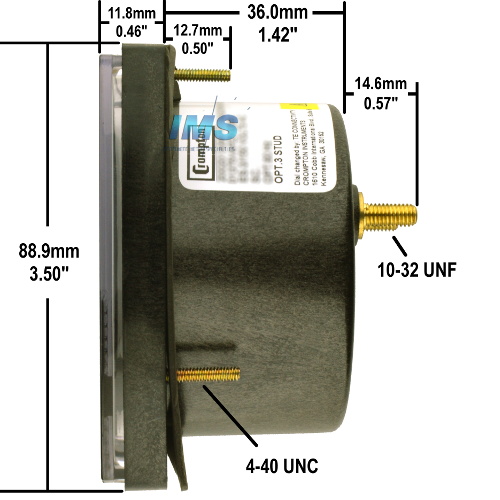

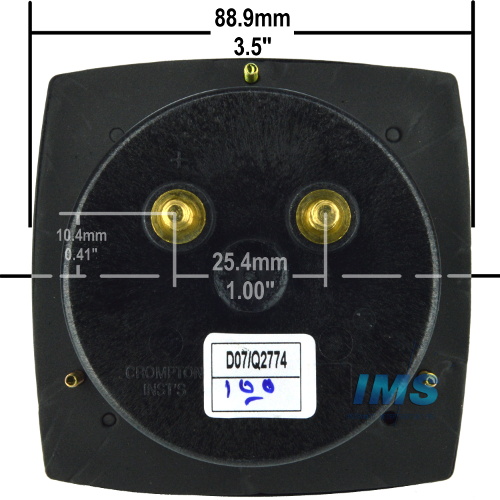

Form Factor 3-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Input Range 110-130VAC
Input Frequency 60Hz
Scale, Range, or Display 0-99,999.99Hrs
Accuracy ±2% of Full Scale
Tariff Code 9030.39.9900
ECCN EAR99
