007-DITA-EASJ-A5

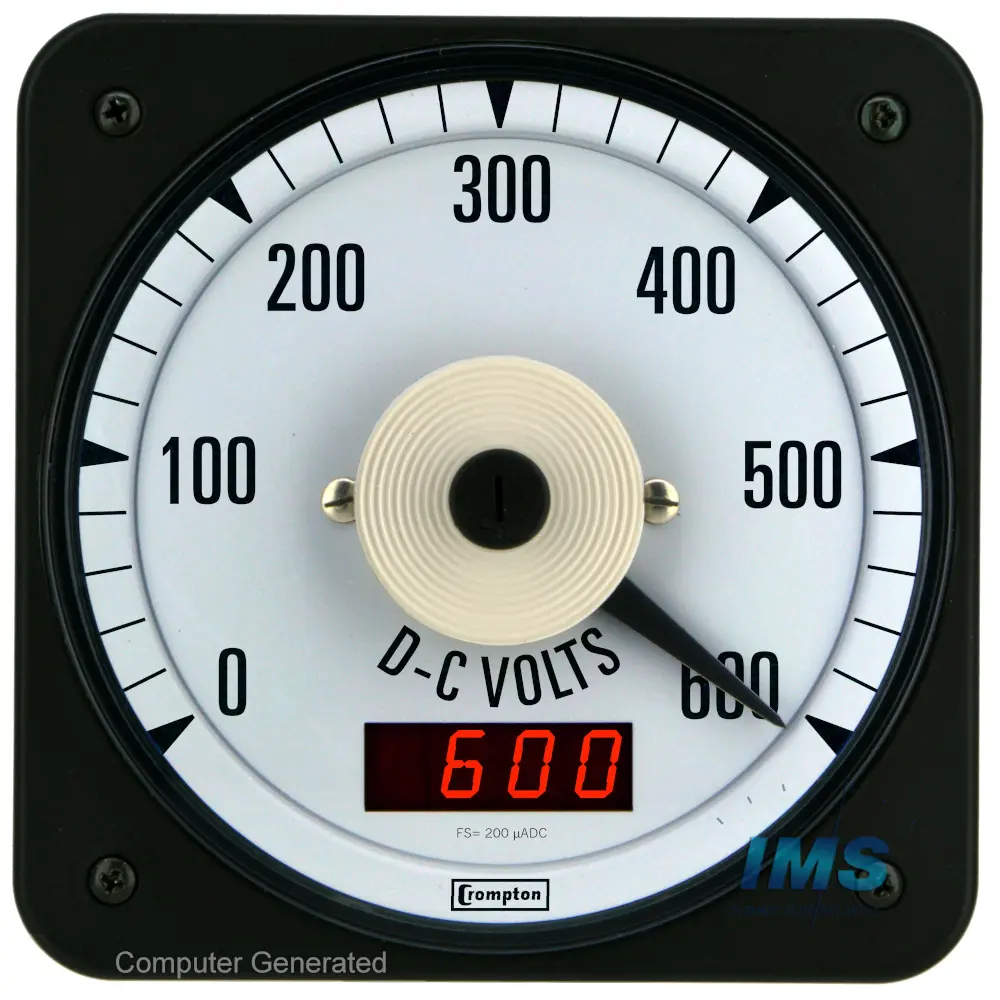

Model 007-DI 0-200uADC Scale 0-600 Specify Caption, 100-250V AC/DC Aux., Switchboard series, Crompton
Crompton Instruments
ANSI SWITCHBOARD METERS
High quality range of switchboard instruments with Class 1 accuracy and which complies with American ANSI-C39.1 (1981) specifications. Available in 4.5 inch case size, the rugged design characteristics meet the needs of the most demanding environmental applications. This extensive range of analog and digital/analog meters utilizes high shock and provides 1% accuracy for all RMS AC and DC ranges. Meters utilize a robust pivot and jewel movement design, and provide 1% accuracy for all RMS AC and DC ranges. The range offers various customized options and features UL and CE Listings and Certifications.

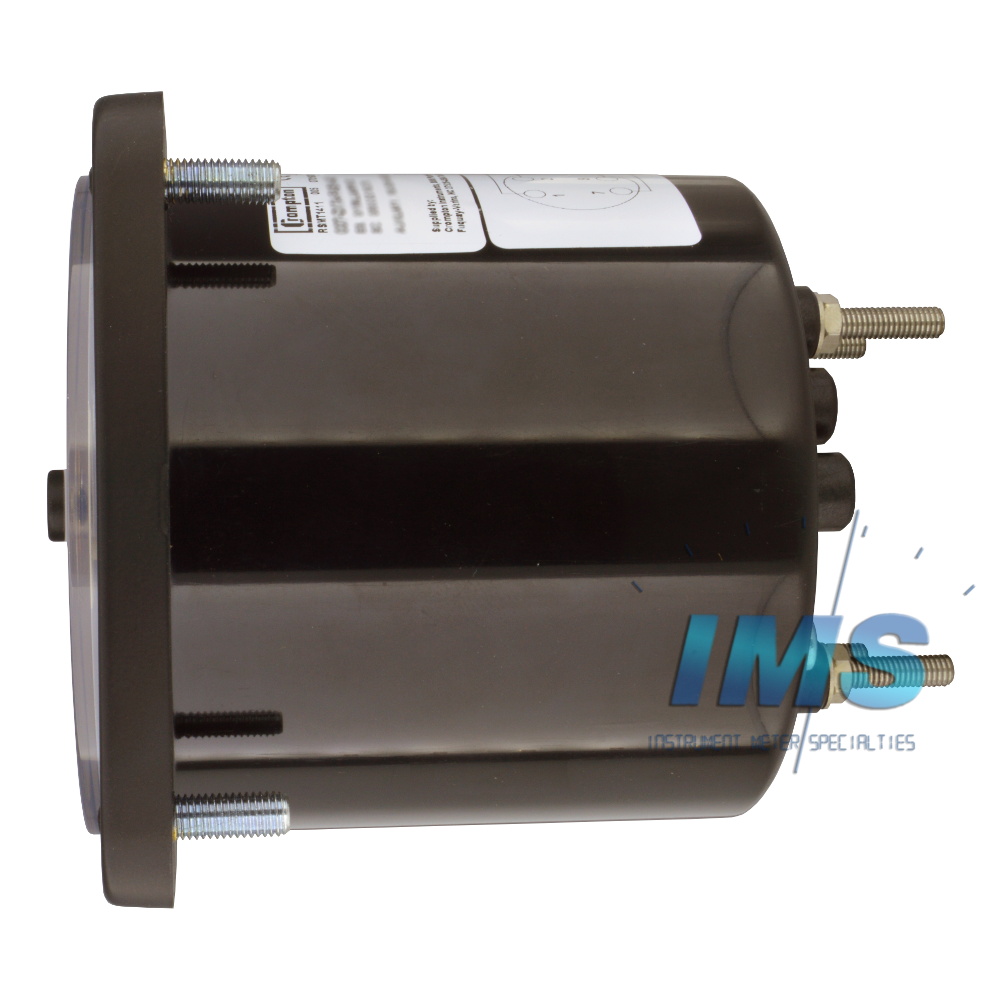

Model 007 is a one piece flame retardant polycarbonate moulding with a black matte finished bezel area, and a specially contoured window to minimize reflection from adjacent light sources. Scales are 250° moving coil with parallax error-free platform dials. Standard dials are white matte with black printed scales and bar knife-edge pointers.
Specifications
| Brand | Crompton |
| Model | 007-DI |
| Input Frequency | DC |
| Input Range | 0-200µADC |
| Scale, Range, or Display | 0-600 Specify Caption |

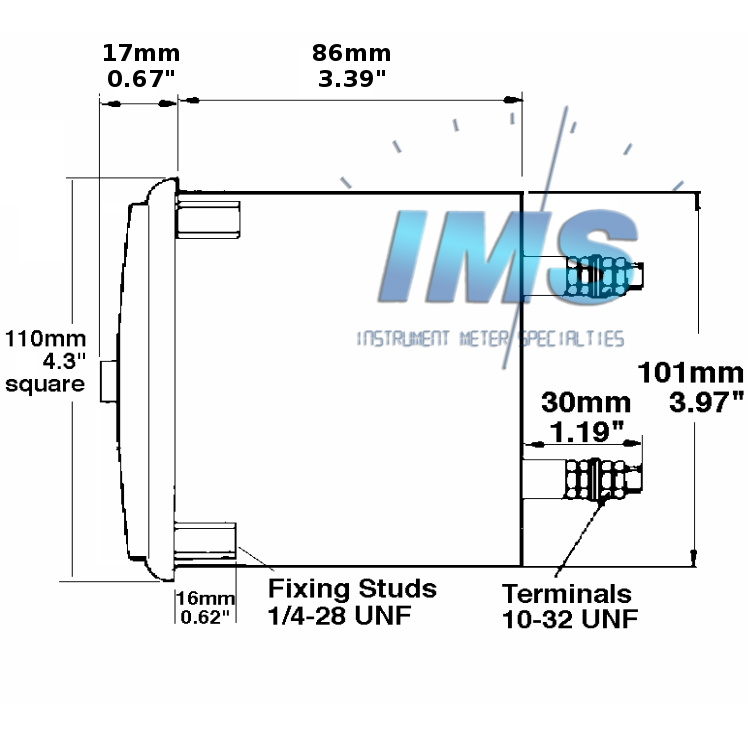

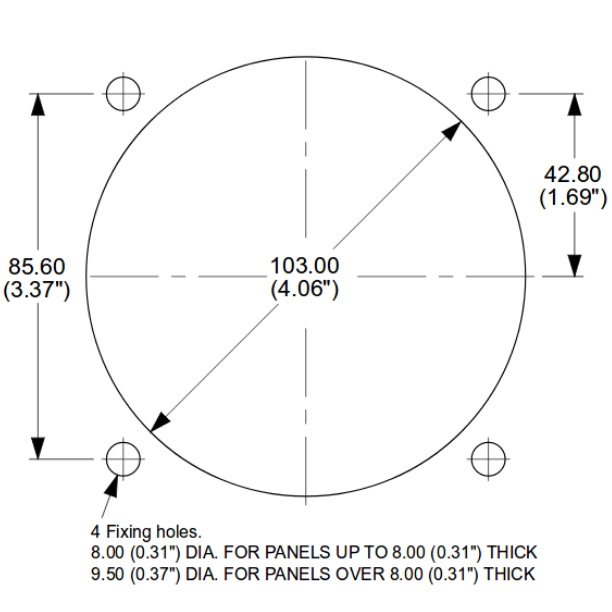

| Form Factor | 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1 |
| ECCN | EAR99 |
| Tariff Code | 9030.39.3000 |
| Series | Switchboard |
| Accuracy | ±1% of Full Scale, ±0.05% of Reading, ±1 count |
| Aux. Power Supply | Switching ~100-240VAC, 50/60Hz |
