007-146A-PRAE-C6

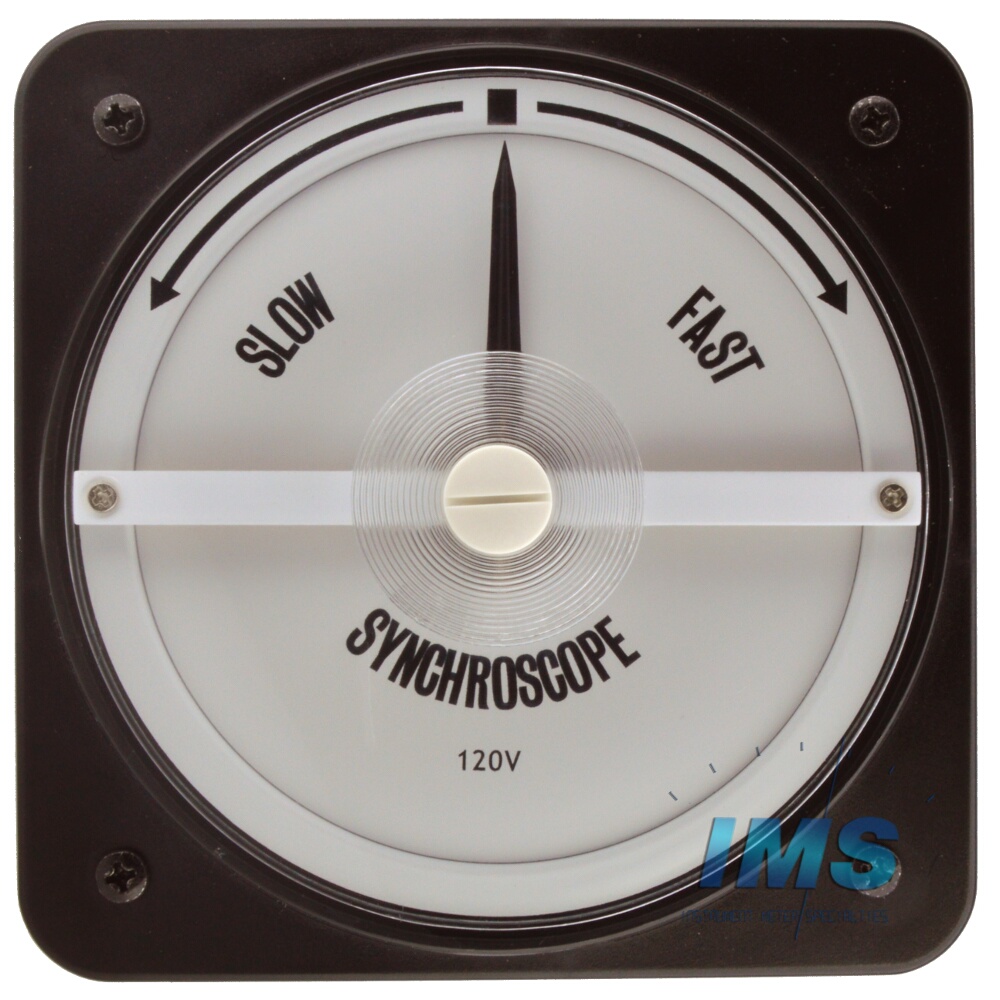

Model 007 120VAC, 60Hz Synchroscope, 360 Degree, Single Phase or 3-Phase, Switchboard Seires, Crompton
The Crompton Instruments AC synchroscope measures and displays the frequency difference of two power sources. Monitoring the display allows the user to connect two synchronized AC power systems together. This can help prevent the potential damage caused by connecting two unsynchronized power sources. The 4.50" meter complies with ANSI C39.1 specifications.
KEY FEATURES
- 2.5 degrees accuracy
- Enhanced safety
- ANSI C39.1
APPLICATIONS
- Switchgear
- Distribution systems
- Energy management
- Process control
- Building management
APPROVALS
- c-UL UL listed file number E354483
Replaces
- 106-452-ADAA (60Hz operated)
- 077-146A-PRAE-C6
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Brand | Crompton |
Series | Switchboard |
Model | 007 |
Form Factor | 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1 |
Input Range | 120VAC |
Input Frequency | 60Hz |
Scale, Range, or Display | Slow Fast |
Accuracy | 2.5 Degrees |
Tariff Code | 9028.30.1900 |
ECCN | EAR99 |
