007-145A-PRAE-C5

Model 007 120VAC, 50Hz Synchroscope, 360 Degree, Single Phase or 3-Phase, Switchboard Seires, Crompton

916.86 916.86 USD 916.86

916.86

  • Brand
  • Model
  • Series
  • Form Factor
  • Input Frequency
  • Input Range
  • Scale, Range, or Display
  • Tariff Code
  • ECCN

This combination does not exist.

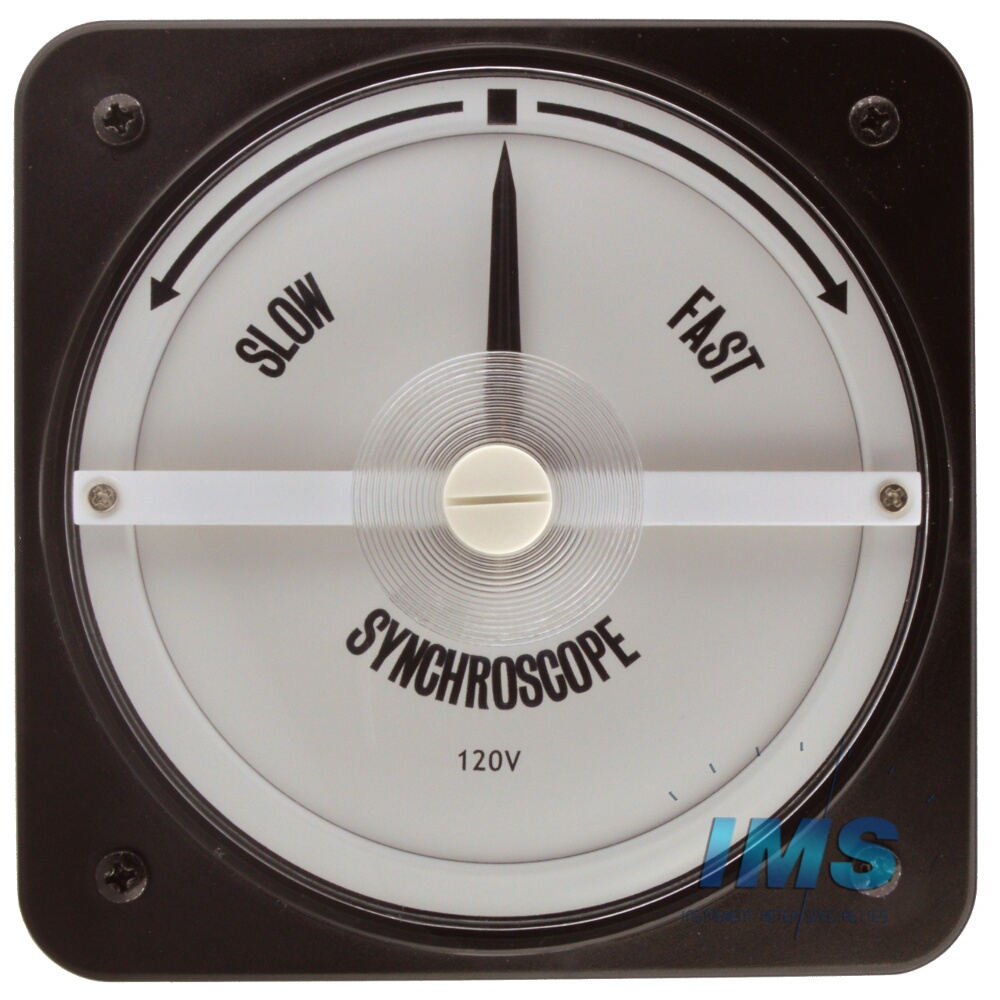

The Crompton Instruments AC synchroscope measures and displays the frequency difference of two power sources. Monitoring the display allows the user to connect two synchronized AC power systems together. This can help prevent the potential damage caused by connecting two unsynchronized power sources. The 4.50" meter complies with ANSI C39.1 specifications.

KEY FEATURES

  • 2.5 degrees accuracy
  • Enhanced safety
  • ANSI C39.1

APPLICATIONS

  • Switchgear
  • Distribution systems
  • Energy management
  • Process control
  • Building management

APPROVALS

  • c-UL UL listed file number E354483

Specifications

Brand Crompton
Model 007
Series Switchboard
Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Frequency 50Hz
Input Range 120VAC
Scale, Range, or Display Slow Fast
Tariff Code 9028.30.1900
ECCN EAR99
