007-05RA-HGZ2

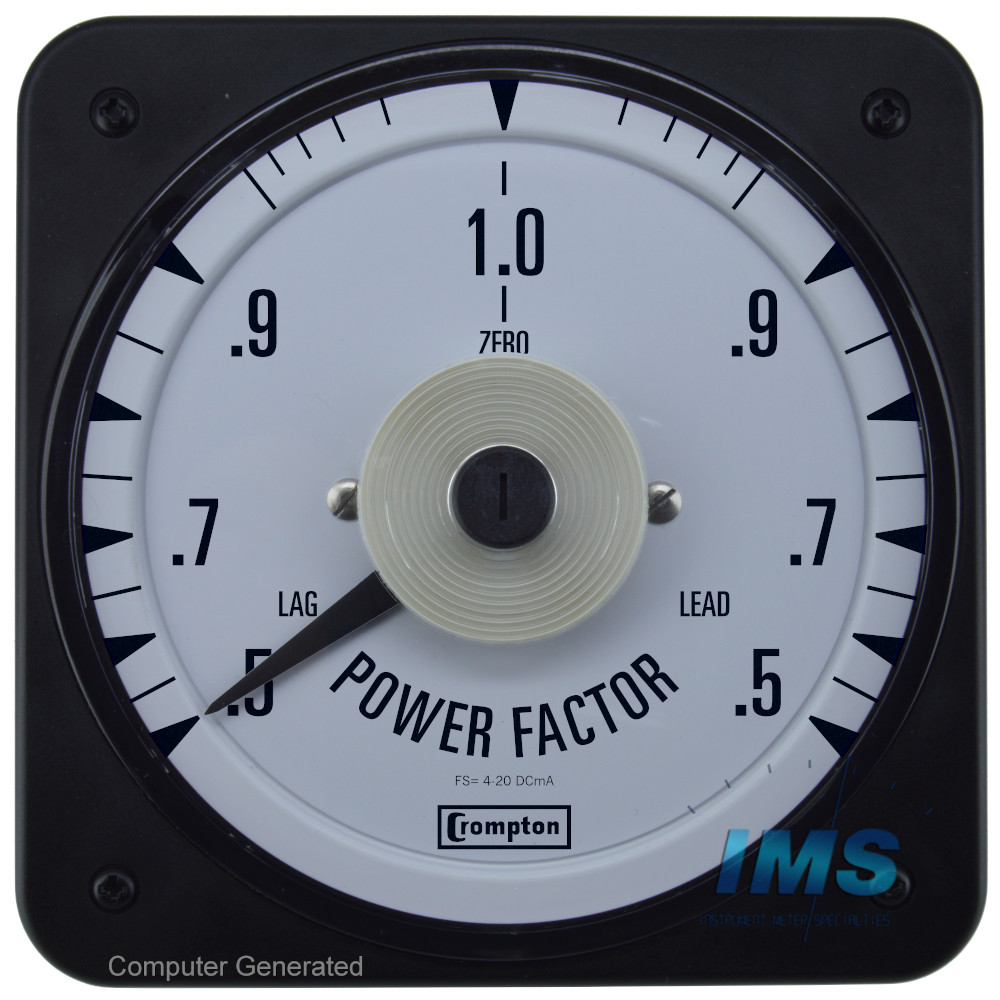

Model 007 4-20mADC Scale .5-1-.5 Power Factor, Switchboard series, Crompton

146.07 146.07 USD 146.07

146.07

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

Crompton Instruments

ANSI SWITCHBOARD METERS

High quality range of switchboard instruments with Class 1 accuracy and which complies with American ANSI-C39.1 (1981) specifications. Available in 4.5 inch case size, the rugged design characteristics meet the needs of the most demanding environmental applications. This extensive range of analog and digital/analog meters utilizes high shock and provides 1% accuracy for all RMS AC and DC ranges. Meters utilize a robust pivot and jewel movement design. The range offers various customized options and features UL and CE Listings and Certifications.

Model 007 is a one piece flame retardant polycarbonate moulding with a black matte finished bezel area, and a specially contoured window to minimize reflection from adjacent light sources. Scales are 250° moving coil with parallax error-free platform dials. Standard dials are white matte with black printed scales and bar knife-edge pointers.

Because process indicators vary so widely, there are many options. We can always make a custom scale for your requirements.

Replaces

  • 103-191-HEZ2
  • 077-05RA-HGZ2

Specifications

Brand Crompton
Series Switchboard
Model 007
Form Factor 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1
Input Range 4-20mADC
Input Frequency DC
Scale, Range, or Display 0.5-1-0.5 Lag-Lead Power Factor
Accuracy ±1% of Full Scale
Tariff Code 9030.39.9900
ECCN EAR99
