ANSI SWITCHBOARD METERS
High quality range of switchboard instruments with Class 1 accuracy and which complies with American ANSI-C39.1 (1981) specifications. Available in 4.5 inch case size, the rugged design characteristics meet the needs of the most demanding environmental applications. This extensive range of analog and digital/analog meters utilizes high shock and provides 1% accuracy for all RMS AC and DC ranges. Meters utilize a robust pivot and jewel movement design. The range offers various customized options and features UL and CE Listings and Certifications.

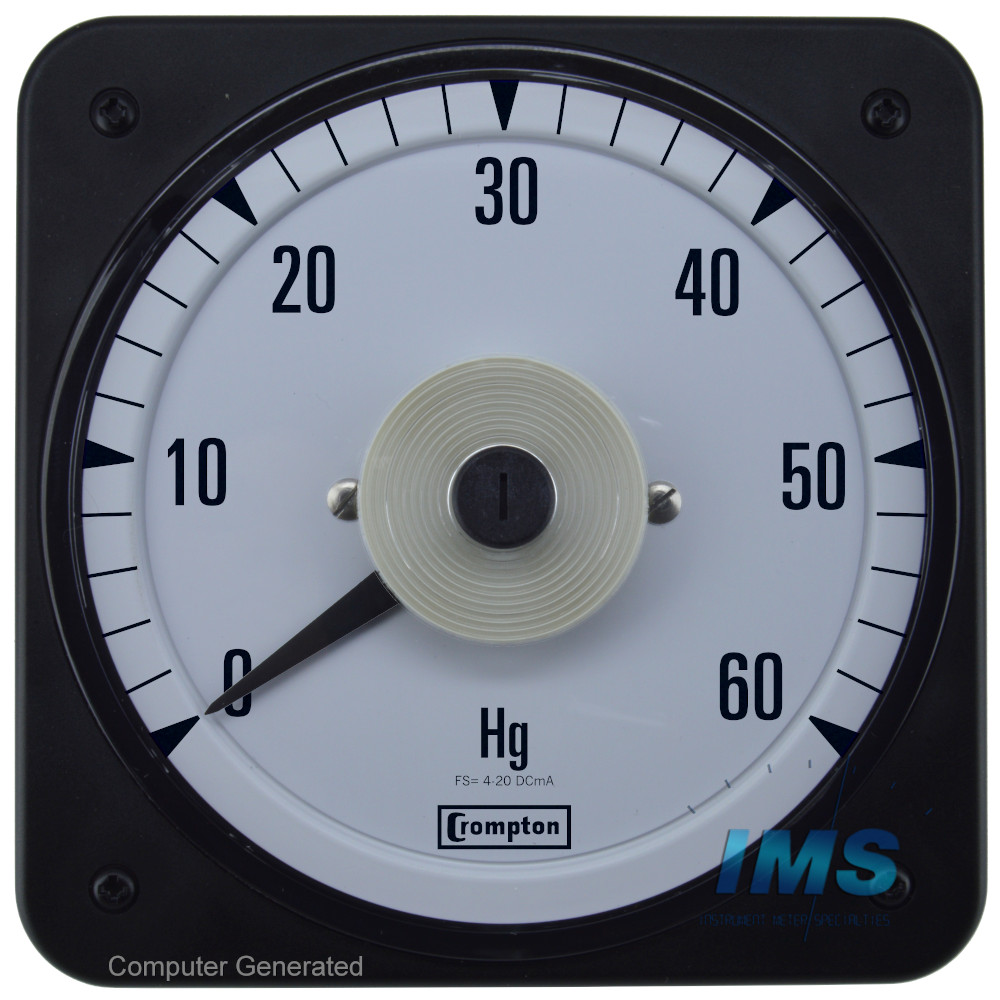

Model 007 is a one piece flame retardant polycarbonate moulding with a black matte finished bezel area, and a specially contoured window to minimize reflection from adjacent light sources. Scales are 250° moving coil with parallax error-free platform dials. Standard dials are white matte with black printed scales and bar knife-edge pointers.
Because process indicators vary so widely, there are many options. We can always make a custom scale for your requirements.
|Form Factor||4-Stud Mount, Panel: 4.5-Inch ANSI C39.1|
|Scale, Range, or Display||0-60 Specify Caption|
|Accuracy||±1% of Full Scale|
