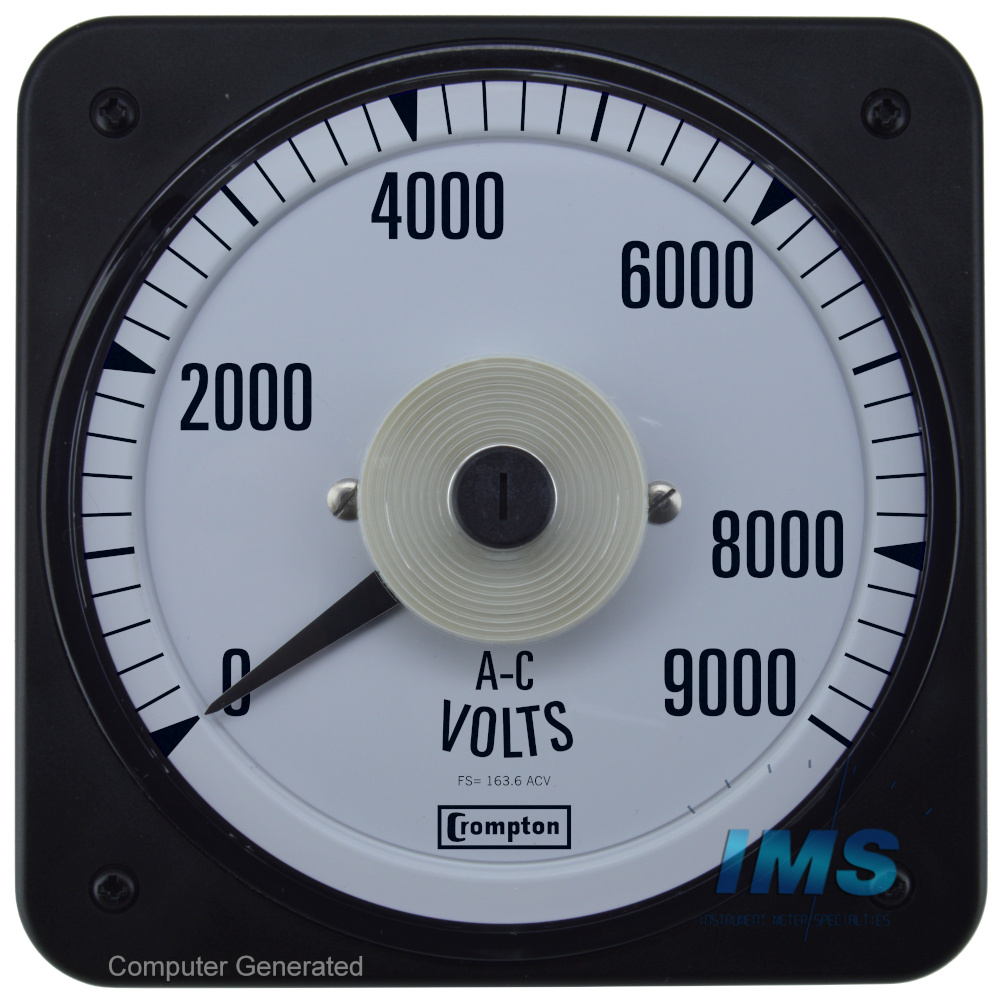

Model 007 0-163.6VAC Scale 0-9000VAC, 50/60Hz, RMS Compensated, Colored Mark, PT ratio 55/1, Switchboard series, Crompton

130.34 130.34 USD 130.34

130.34

Not Available For Sale

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN
  • PT/VT Turns Ratio

This combination does not exist.

Crompton Instruments

ANSI SWITCHBOARD METERS

High quality range of switchboard instruments with Class 1 accuracy and which complies with American ANSI-C39.1 (1981) specifications. Available in 4.5 inch case size, the rugged design characteristics meet the needs of the most demanding environmental applications. This extensive range of analog and digital/analog meters utilizes high shock and provides 1% accuracy for all RMS AC and DC ranges. Meters utilize a robust pivot and jewel movement design, and provide 1% accuracy for all RMS AC and DC ranges. The range offers various customized options and features UL and CE Listings and Certifications.

Model 007 is a one piece flame retardant polycarbonate moulding with a black matte finished bezel area, and a specially contoured window to minimize reflection from adjacent light sources. Scales are 250° moving coil with parallax error-free platform dials. Standard dials are white matte with black printed scales and bar knife-edge pointers.

Colored mark as standard is Red. An alternate color may be specified upon ordering.

Replaces

  • 077-05GA-Z6UY-C6

Specifications

Product
Brand Crompton
Series Switchboard
Model 007
Form Factor 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1
Input Range 0-163.6VAC
Input Frequency 50Hz, 60Hz
Scale, Range, or Display 0-9000VAC
Accuracy ±1% of Full Scale
Tariff Code 9030.39.9100
ECCN EAR99
Potential Transformers
PT/VT Turns Ratio 55/1
