007-05GA-PXWG-C7-SL

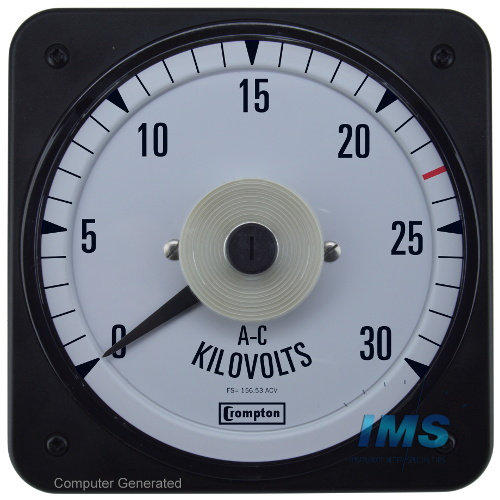

Model 007 0-156.53VAC Scale 0-30KVAC, 50/60Hz, RMS Compensated, Colored Mark, PT ratio 191.7/1, Switchboard series, Crompton
Crompton Instruments
ANSI SWITCHBOARD METERS
High quality range of switchboard instruments with Class 1 accuracy and which complies with American ANSI-C39.1 (1981) specifications. Available in 4.5 inch case size, the rugged design characteristics meet the needs of the most demanding environmental applications. This extensive range of analog and digital/analog meters utilizes high shock and provides 1% accuracy for all RMS AC and DC ranges. Meters utilize a robust pivot and jewel movement design, and provide 1% accuracy for all RMS AC and DC ranges. The range offers various customized options and features UL and CE Listings and Certifications.
Model 007 is a one piece flame retardant polycarbonate moulding with a black matte finished bezel area, and a specially contoured window to minimize reflection from adjacent light sources. Scales are 250° moving coil with parallax error-free platform dials. Standard dials are white matte with black printed scales and bar knife-edge pointers.
Colored mark as standard is Red. An alternate color may be specified upon ordering.
Standard mark position is 23KVAC. An alternate position may be specified upon ordering
Replaces
- 077-05GA-PXWG-C6
Specifications
Product | |
---|---|
Brand | Crompton |
Series | Switchboard |
Model | 007 |
Form Factor | 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1 |
Input Range | 0-156.53VAC |
Input Frequency | 50Hz, 60Hz |
Scale, Range, or Display | 0-30kVAC |
Accuracy | ±1% of Full Scale |
Tariff Code | 9030.39.9100 |
ECCN | EAR99 |
Potential Transformers | |
---|---|
PT/VT Turns Ratio | 191.7/1 |
Uncategorized | |
---|---|
Dial Options | ? Index Line At ? |
