007-05AA-FAUA

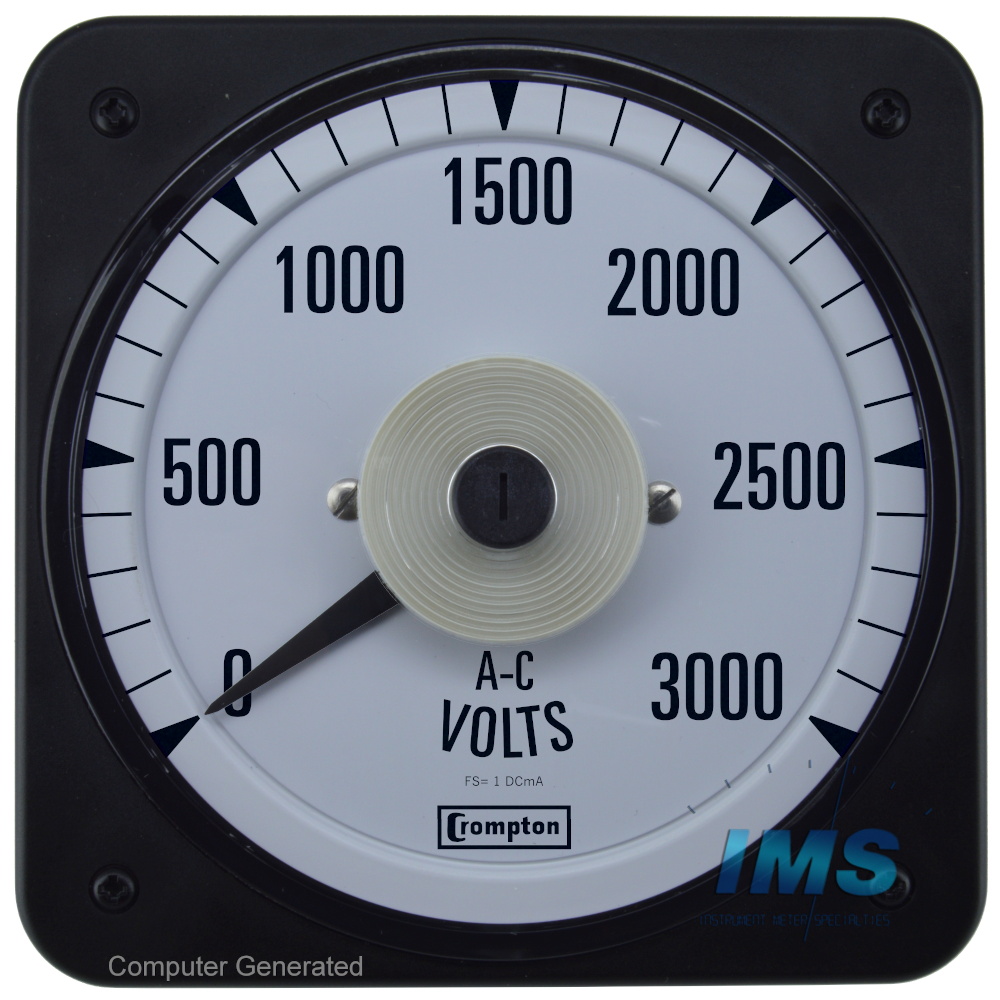

Model 007 0-1mADC, Scale 0-3000 Specify Caption, Switchboard series, Crompton
Crompton Instruments
ANSI SWITCHBOARD METERS
High quality range of switchboard instruments with Class 1 accuracy and which complies with American ANSI-C39.1 (1981) specifications. Available in 4.5 inch case size, the rugged design characteristics meet the needs of the most demanding environmental applications. This extensive range of analog and digital/analog meters utilizes high shock and provides 1% accuracy for all RMS AC and DC ranges. Meters utilize a robust pivot and jewel movement design, and provide 1% accuracy for all RMS AC and DC ranges. The range offers various customized options and features UL and CE Listings and Certifications.
Model 007 is a one piece flame retardant polycarbonate moulding with a black matte finished bezel area, and a specially contoured window to minimize reflection from adjacent light sources. Scales are 250° moving coil with parallax error-free platform dials. Standard dials are white matte with black printed scales and bar knife-edge pointers.
As a Crompton Modification center, we reduce the lead times by keeping parts on hand and performing final printing in house. We also offer the ability to create custom artworks for this meter, and the ability to add a logo.
Replaces
- 103-111-FAUA
- 077-05AA-FAUA
Specifications
Brand | Crompton |
Series | Switchboard |
Model | 007 |
Form Factor | 4-Stud Mount, Switchboard: 4.5-Inch ANSI C39.1 |
Input Range | 0-1mADC |
Input Frequency | DC |
Scale, Range, or Display | 0-3000 Specify Caption |
Accuracy | ±1% of Full Scale |
Tariff Code | 9030.39.9900 |
ECCN | EAR99 |
