Model 25 0-50mVDC Scale 0-300ADC, 3.5" Round series, Simpson Electric

137.43 137.43 USD 137.43


  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

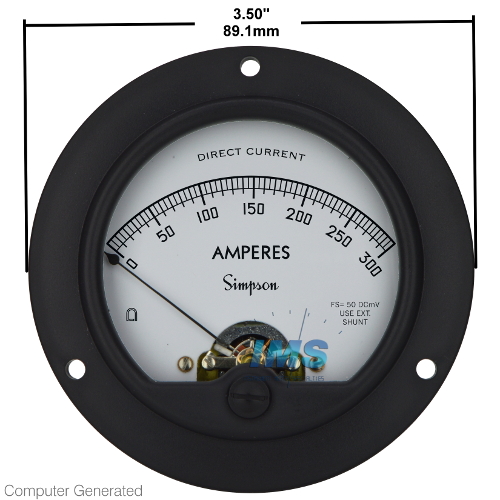

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The cover features an O-Ring backed zero corrector to ensure this meter can endure in environments where dust and water may be an issue.

These meters require an external shunt (sold separately). The meters are calibrated for external 5-foot or 0.065Ω leads. Each 0.1Ω of resistance above or below that value changes the indication by 1% at full scale

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is Underwriter Laboratories Recognized.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such as meter illumination, custom artworks, and adding company logos to dial artworks.


Brand Simpson Electric
Series Round
Model 25
Form Factor 3-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Input Range 0-50mVDC
Input Frequency DC
Scale, Range, or Display 0-300ADC
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
