00125 PM

https://www.metersales.com/web/image/product.template/26116/image_1920?unique=4aa025f

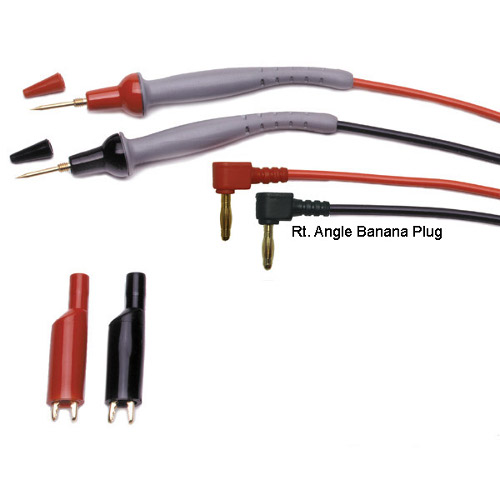

Test Leads, Banana Plug, Probes & Screw-on Alligator Clips, for Simpson 260 series 3,4,5,6, & 8XI (not 8)

39.60 39.6 USD 39.60

39.60

Not Available For Sale

  • Tariff Code
  • ECCN

This combination does not exist.

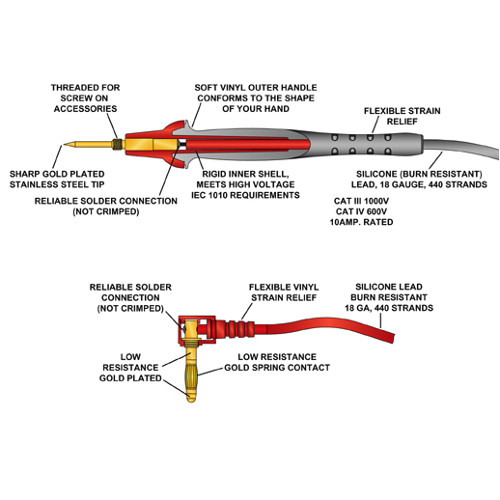

00125PM features:

  • Sharp gold plated points
  • Silicone leads, burn resistant
  • Soft, comfortable hand grips
  • Conforms to the shape of your hand
  • Gold Plated screw on Alligator Clips
  • 18GA Wire
  • Tip Length .88"
  • Standard Length 48"
  • Optional Lengths 24", 36", 60", 72", 96" & 120" can be custom ordered
  • CAT III 1000V, CAT IV 600V, 10A

The soft leads lets you say, "goodbye", to hand fatigue and finger calluses. The soft probe bends 90 degrees or more. The probe conforms to the shape of your hand. This soft flexible probe bends gently to reduce wear and breakage of the lead. Many combinations are possible with the optional "screw on" accessories. The 48" long, 18GA. meter leads, are made of top quality silicone.


00125 PM Used on the following Simpson Products

  • Model 228
  • Model 229 series 2
  • Model 250
  • Model 255
  • Model 260 series 3
  • Model 260 series 4
  • Model 260 series 5
  • Model 260 series 6
  • Model 260 series 6XL
  • Model 260 series 8Xi
  • Model 265
  • Model 270 series 1
  • Model 270 series 2
  • Model 270 series 3
  • Model 270 series 4
  • Model 362 series 2
  • Model 370 to 377
  • Model 605 series 2


Specifications

Tariff Code 9030.39.0100
ECCN EAR99
