00043 PM

https://www.metersales.com/web/image/product.template/33165/image_1920?unique=50b32a2

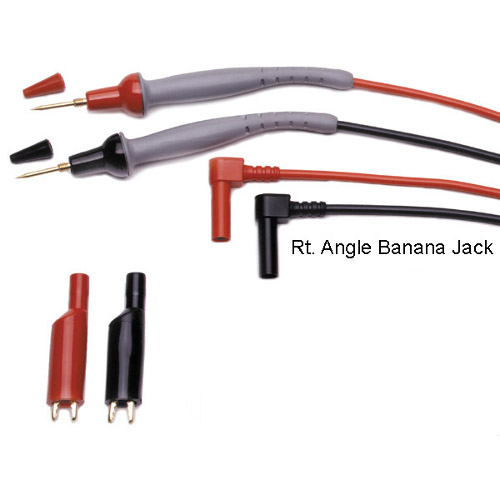

Test Leads, Reverse-Banana Jack (Female), Probes & Screw-on Alligator Clips, for Simpson 260 series 7, 8 (not 8Xi).

39.60 39.6 USD 39.60

39.60

Not Available For Sale

  • Tariff Code
  • ECCN

This combination does not exist.

00043PM features:

  • Sharp gold plated points
  • Silicone leads, burn resistant
  • Soft, comfortable hand grips
  • Conforms to the shape of your hand
  • Gold Plated screw on Alligator Clips
  • 18GA Wire
  • Tip Length .88"
  • Standard Length 48"
  • Optional Lengths 24", 36", 60", 72", 96" & 120" can be custom ordered
  • CAT III 1000V, CAT IV 600V, 10A

The soft leads lets you say, "goodbye", to hand fatigue and finger calluses. The soft probe bends 90 degrees or more. The probe conforms to the shape of your hand. This soft flexible probe bends gently to reduce wear and breakage of the lead. Many combinations are possible with the optional "screw on" accessories. The 48" long, 18GA. meter leads, are made of top quality silicone.

00043 PM Used on the following Simpson Products

  • Model 260 series 7
  • Model 260 series 8 (not 8Xi)
  • Model 270 series 5
  • Model 360 series 3
  • Model 460 series 5
  • Model 460 series 6
  • Model 461
  • Model 462
  • Model 464 series 4
  • Model 465 series 3
  • Model 470
  • Model 474
  • Model 14510


Specifications

Tariff Code 9030.39.0100
ECCN EAR99
