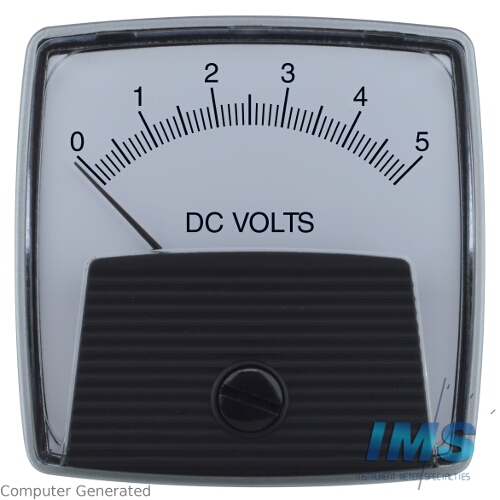

Analog Panel Meters:
Meets or Exceeds ANSI C39.1. 1981
- Dielectric Test Voltage
- AC Burden
- Self Shielding Instruments
- RoHS Compliant
- Accuracy: 2% of full scale input for DC
Pivot and Jewell Analog Panel Meter Movement Type:
Comprised of a hardened pivot between two polished bearing surfaces. Rugged and shock resistant. Suitable for use in marine, process and industrial applications.
As a Brighton Modification Center, we keep the lead time low by stocking the unfinished meter and performing final modifications. If you would like to use a different artwork, add colored regions, or add a logo, contact us and get it made custom!
|Form Factor||3-Stud Mount, Panel: 2.5-Inch ANSI C39.1|
|Scale, Range, or Display||0-5VDC|
