Analog Panel Meters:
Meets or Exceeds ANSI C39.1. 1981
- Repeatability
- Dielectric Test Voltage
- AC Burden
- Self Shielding Instruments
- RoHS Compliant Available
- Accuracy: +/-3% of Span (+/-0.6Hz for 20Hz Span)
Pivot and Jewell Analog Panel Meter Movement Type:
Comprised of a hardened pivot between two polished bearing surfaces. Rugged and shock resistant. Suitable for use in marine, process and industrial applications.
As a Brighton Modification Center, we keep the lead time low by stocking the unfinished meter and performing final modifications. If you would like to use a different artwork, add colored regions, or add a logo, contact us and get it made custom!
Specifications
| Brand | Brighton Electronics |

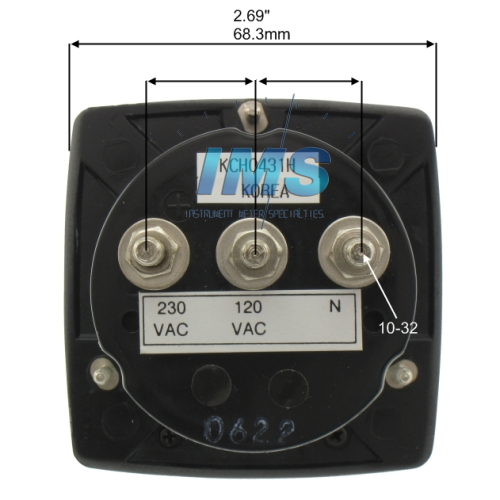

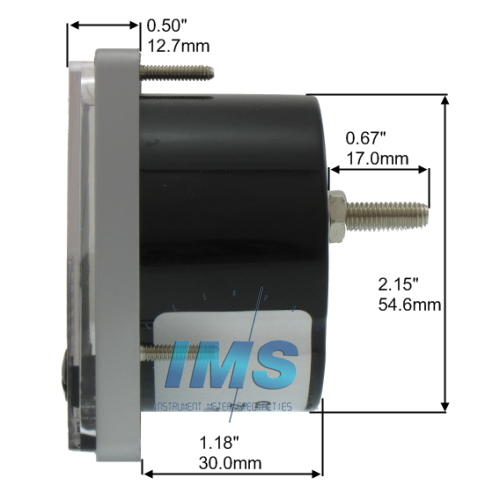

| Form Factor | 3-Stud Mount, Panel: 2.5-Inch ANSI C39.1 |
| Input Frequency | 50Hz, 60Hz |
| Input Range | 45-65Hz |
| Model | P2 |

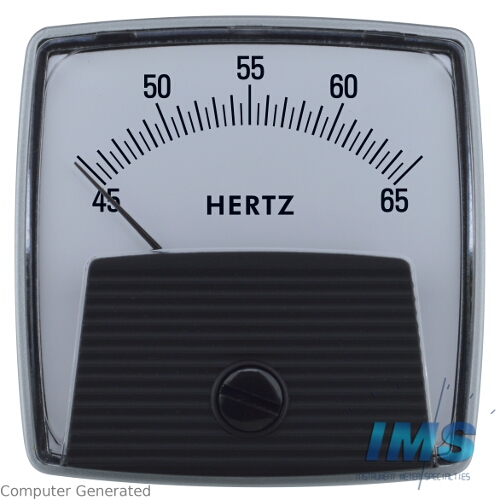

| Scale, Range, or Display | 45-65Hz |
| Tariff Code | 9030.33.3800 |
| ECCN | EAR99 |
